Trash Bin Garbage Can Injection Moulding Machine

Product Description

Trash Bin Garbage Can Injection Moulding Machine
Product Description

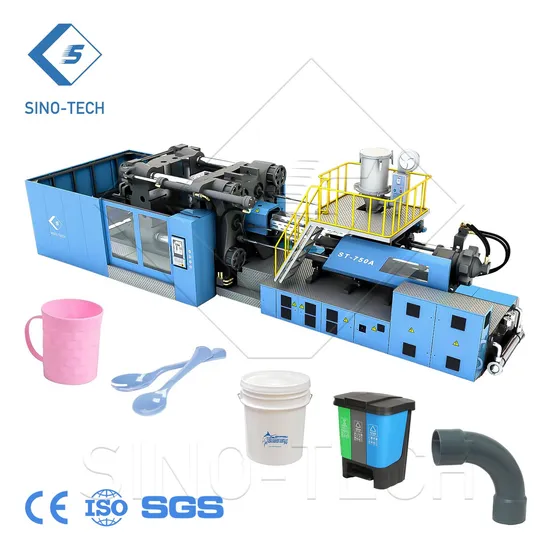

SINO-TECH ST-1000JSell injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. 1000JSell with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features
1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3. Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 50 to 4000Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

Item		1000JSell
Screw diameter	mm	100	110	125
Theoretical shot volume	cm³	3848	4657	6013
Shot weight (PS)	g	3646	4191	5412
Length/Diameter ratio	L/D	22.3	20.0	17.7
Injection pressure(high pressure and low speed)	MPa	215	178	138
Injection pressure(low pressure and high speed	MPa	156	129	100
Injection rate(high pressure and low speed)	cm³/sec	671	812	1048
Injection rate(low pressure and high speed)	cm³/sec	925	1119	1445
Plasticizing capacity (PS)	g/s	93	118	154
Injection stroke	mm	490
Screw speed	rpm	115
Injection unit force	Ton	20.0
Carriage stroke	mm	920
Clamping force	Ton	1000
Opening force	Ton	106.1
Opening force	Ton	34.7
Max. daylight	mm	2400
Clamping stroke	mm	1200-1800
Distance btwn. Tie bars	mm	1210*1060
Min mould dimension	mm	840*740
Mould thickness range	mm	600-1200
Ejector force	Ton	21.5
Ejector stroke	mm	300
No. of ejector pins	unit	21
Dry Cycle(Euromap 6)	S	5.7
Major motor	kW	105.2
System pressure	MPa	17.5 22.1
No. of heater zones	unit	5+1
Heater input power	kW	56
Ultimate capacity	kw	162.2
Current	A	197.2
Net weight	Ton	45.5
Oil filling capacity	L	1800
