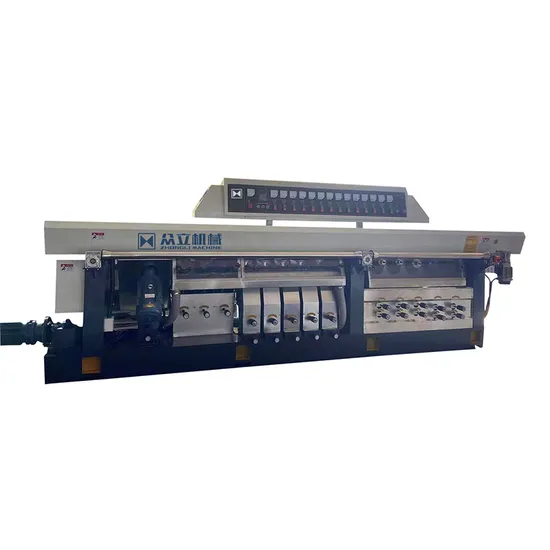

Zl Chamfer Polishing Machine Manufacturer for Marble Granite Quartz Stone for Sale
Basic Info.
Model NO.
ZLMP-14
Type
Stone Edge Polishing Machine
Usage
Ceramics, Glass, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Stone Industry
Source Voltage
380V/220V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
Dimensions
L8000*W1150*H2500
Maximum Processing
L3200*W2000*H100
Main Motor Power
56kw
Total Weight
4.3t
Transport Package
Plastic Film Packaging
Specification
14
Trademark
ZL MACHINE
Origin
Taizhou, Zhejiang Province
HS Code
8464209000
Production Capacity
1000
Product Description
Product Parameters| Model | ZLMP-14 | Unit |
| Maximum Processing | L3200*W2000*H100 | mm |
| Main motor power | 1-2th 5.5kw 3-13th 3kw 14th 5.5kw | kw |
| Total power | 56 | kw |
| Main part sizes | L5000*W1150*H1750 | mm |
| Dimensions | L8000*W1150*H2500 | mm |
| Water consumption | 4 | m³/h |
| Total weight | 4.3 | t |
| Machine delivered method | Main part delivered as whole |
Product Description
We supply Stone Edge Polishing Machines, type ZLMP-14, for chamfering and polishing the edges of marble,granite,quartz stone, and ceramic.The slabs are upright into the conveyor, and the workheads are under the slabs. After the two conveyors on the cross beams clamp the slab, the workhead starts,so there is no need for the operator to adjust the slab. Some customers need a shape of edge; the operator just chooses a certain group of workheads.
It is high-efficiency, processing 2-3m per minute, high-precision, easy, and simple to operate. 1-5th head for polishing arc edge,French edge; 2-10th for polishing straight edge; 11-13th for grinding small chamfering on surface; 14th for back-side chamfering.
Application picture
Packaging & Shipping
Company Profile
Certifications
