Durable High Power Winding Machine with Auto Coil Winder Efficiency

Product Description

Introducing the Electric Winding Machine (DLM-0866), a masterpiece of engineering innovation designed to elevate your winding processes to unparalleled heights of efficiency and precision. This state-of-the-art equipment embodies cutting-edge technology, ensuring your operations are run with the utmost accuracy, transforming every winding task into an effortless, expertly executed operation.
Presenting the DLM-0866 Coil Winding Machine, an epitome of precision engineering crafted to deliver exceptional efficiency in every coil winding task. Experience the zenith of innovation, where meticulous design meets unparalleled functionality to redefine the standards of coil winding excellence.
1. Advanced Array Motor: Experience the dynamic, high-performance capabilities of our cutting-edge array motor, setting a new standard in winding technology. This motor is engineered to deliver robust power and adaptability, ensuring a seamless, high-precision winding experience that surpasses expectations.
2. Automatic Computer Control: Effortlessly automate your processes with our sophisticated computer control system, designed for seamless and intuitive operation. This feature ensures user-friendly navigation and precision control, streamlining your workflow to achieve maximum productivity and accuracy.
3. Super Quality: Unmatched excellence in design and functionality, ensuring the highest standards of quality in every aspect of performance. Our commitment to quality ensures that each component is meticulously crafted for durability and reliability, providing a superior user experience.

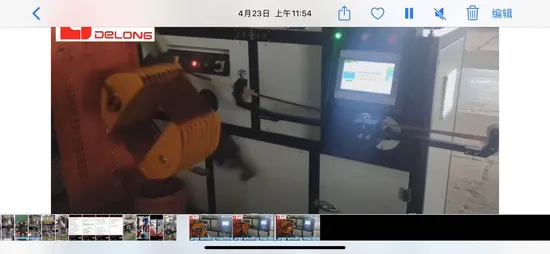

Introducing the DLM-0866 Large Winding Machine, a harmonious blend of size and impeccable functionality, redefining industry standards. This machine embodies a perfect marriage of robust construction and advanced technology, providing an unparalleled winding solution across various applications.
1. This horizontal and automatic winding machine is ingeniously equipped with serial parallel coil formers, making it perfectly suited for a diverse range of AC and DC motor stator coils, as well as inductance coils. Its versatile design allows for seamless adaptability and broad application in various industrial settings.
2. With a single board computer at its core, the machine deftly handles complex tasks like zero resetting, traversing, and skipping, ensuring precise alignment and seamless operation. This intelligent system guarantees precision and efficiency, simplifying traditionally complex winding processes.
3. User-Friendly Control Panel: Effortlessly tailor your settings by adjusting wire diameter, number of turns, traverse, and skipping distances to meet your specific operational needs. The intuitive interface ensures ease of use, allowing operators to customize and optimize performance effortlessly.
Technical Parameter: Explore the superior specifications that define our machine's remarkable capabilities, delivering top-tier performance. Our meticulously designed parameters set a new benchmark for excellence, ensuring durability and efficiency at every turn.
Suitable Wire Diameter: Expertly crafted to handle wire diameters ranging from 0.1 to 1.2 mm, ensuring versatility and ease of use. This adaptability provides the flexibility needed to accommodate various winding applications with precision and finesse.
Winding Width: Offers a versatile winding width from 0 to 30 mm, perfectly catering to a wide range of applications. This feature enhances the machine's adaptability, making it suitable for diverse operational demands.
Winding Diameter: Accommodates winding diameters between 25 to 180 mm, providing unparalleled flexibility in operations. This capability allows for a wide array of winding tasks, enhancing the machine's versatility and application scope.
Effective Length of Series-mode Axis: Features an expansive range of 500 to 600 mm, delivering enhanced performance and capability. This extensive range ensures that the machine can handle larger tasks with ease and precision.
Return Diameter of Former: Supports return diameters spanning 210 to 280 mm, optimizing efficiency and operational effectiveness. This broad range enhances the machine's adaptability, allowing it to meet diverse operational requirements efficiently.
Rotation Speed: Accelerate your operations with a robust rotation speed of 3200 R.P.M, driving productivity and efficiency. This high-speed capability ensures quick and effective winding, significantly enhancing operational throughput.
Power Source: Dependable 220V 50Hz power source ensures consistent, reliable, and stable operation every time. This reliable power specification guarantees uninterrupted performance, essential for continuous industrial applications.
Pressure of Air Supply: Operates within an air supply pressure range of 0.5-0.8 MPa, ensuring optimal performance and efficiency. This ensures the machine runs smoothly, providing consistent results and maintaining high productivity levels.
Power: Harness the robust power of 750W to execute tasks with unmatched precision and reliability. This potent energy output ensures the machine performs at peak efficiency, handling intricate tasks with ease.
Dimension (L x M x H): Compact and efficient with dimensions of 1450 x 912 x 1200 mm, perfectly suited for various industrial settings. This space-efficient design ensures the machine fits seamlessly into your workspace, maximizing utility without compromising on performance.
Weight: Approximately 800 kg, providing a robust yet manageable solution for diverse industrial environments. This substantial weight ensures stability and durability, making it a reliable choice for heavy-duty applications.
