1kw 2.7-2.9GHz S-Band X-Band GaN Solid State Pulse Sspa for Radar

Product Description

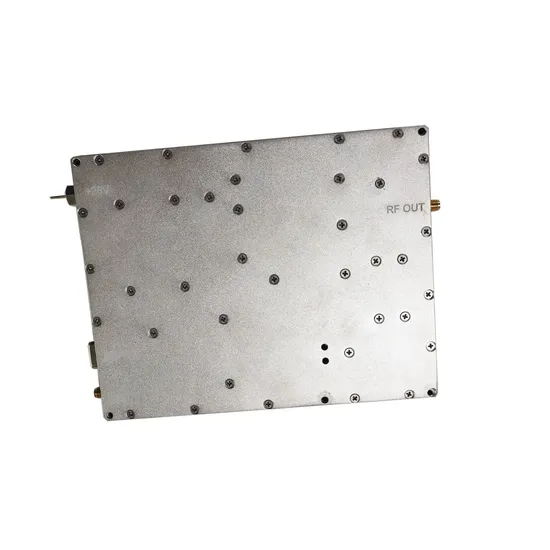

PRODUCT DESCRIPTION: This Power Amplifier module is working for 2900-3100MHz, model type: PWR-S-Pulse with aluminum case, it is power up via a pre-amplifier then start work.
PA is equiped with over-high VSWR and over-high power protection to avoid/reduce the damage from any misoperation. I/O Port is compatible with DB9 serial port.
It's can work not just a single amplifier, also can be a part to consist a more powerful unit which maximum power can reach to 3000Watts.
More function and parameters are avaiable to customized according to actual requirement.
TECHNICAL SPECIFICATION:

Item			Parameters
Frequency Range X Band			2.7-2.9GHz
Band width			200MHz
Peak Transmit Power		1000W	57dBm
		/	/
Power Gain			>50dB
Input Signal Level			15-20dBm
Gain Flatness at Psat			<3dB
Duty Cycle			<20%
Pulse Width			1 to 200 µsec
Rise Time			<100 nsec
Fall Time			<100 nsec
Pulse Droop			0.5 dB @ 100 µsec
Harmonic Suppression			>50 dBc
Amplitude Variation			<0.5dB
Phase Variation			<±50
Spurious Suppression			>70 dBc
IN & OUT VSWR			2:01
Working Power Supply		200W	28VDC
		500W	50VDC
Control Port (Optional)			RS485 or Customized
Operating Temperature			-20~65ºC
RF Connectors			SMA-Female (RF Input ) & N-Female (RF Out)
Dimension			180x90x25mm(Diver of PA) +120x110x50mm(Final PA)
With Housing	Dimension		19'' standard Rack, 2U Height
	Power Supply		AC220V/50Hz
	Cooling Type		Auto-Fans cool + Radiator(heat sink)
Function (Optional)			Monitoring: VSWR, RF Power, Temperature, Current, Input RF Level
			Protection: Shutdown over High-VSWR, shutdown over High-Temperature
			and auto-restart
			PA Enable \ Disable (TTL)
Quality Standard (Optional)			MIL-STD-480 (Design), MIL-STD-810(Temperatur), MIL-STD-167(Vibration),
			MIL-STD-810(Impact), MIL-STD-461(EMI)
PS: Items marked with "Optional" are not standard items, if need those functions should info us before production.
