Plastic Shockproof 330-Degree Rotating Digital Pressure Guage with 3D Model

Product Description

Product Description
MD-S281 is a digital pressure gauge with a built-in high-precision pressure sensor, which can accurately display pressure in real time, and has the characteristics of high precision and good long-term stability.

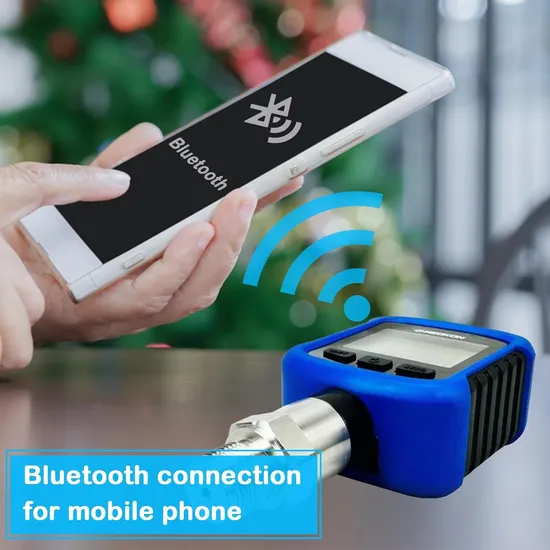

This digital pressure gauge is equipped with a large-size LCD liquid crystal display, which has multiple functions such as zero reset, backlight, power on and off, unit switching, low voltage alarm, etc. It is easy to operate and install. The product adopts the overall casing with rubber, which has good shock resistance and can measure gases, liquids, oils and other media that are not corrosive to stainless steel. This series of products supports Bluetooth applet configuration parameters, including: pressure value display, acquisition rate modification, reset operation and other settings.
MD-S281 digital pressure gauge is suitable for portable pressure measurement, equipment matching, calibration equipment and other pressure measurement fields.

Technical Characteristics:Technical Features:
The product is beautiful, the whole shell is covered with plastic, and the hand feels delicate
Large LCD screen, support multiple unit switching
Support reset, backlight, power on and off, Bluetooth connection, multiple functions Low power consumption design, 2 AA batteries, battery life 4~5 months
Dial orientation can be rotated 330°
Application:Machinery and electronic industry
Supporting equipments of instruments
Pressure laboratory
Mechanical engineering automation
Replacement of pointer pressure gauge
Specification:

Range	Negative/compound pressure:-0.1~0...0.1...1.6MPa Differential pressure: 0-10..40....60kPa Noraml pressure:0~0.1...1.0...6MPa High Pressure:0~10...25...60MPa
Overload Capacity	200%FS
Backlight color	White
Dimension	143.5*75*40.5mm
ACC	0.5%FS,0.2%FS
Long-term Stability	Typical +0.3%FS/year
Operating Temperature	-20~ 65C
Electrical protection	Anti-electromagnetic interference design
Measuring medium	Oil, water, gas and other stainless steel corrosion free medium pressure
Connection	M20*1.5, G1/4 or customized
Connection material	304 stainless steel
Shell material	TPE+ABS
Product Features	Turn on/off backlight clear zero unit switch extreme value record Bluetooth connection
Power supply voltage	3V (2 AA batteries)
Power display	Four sections display
Dial	Can rotate the dial at 330 degrees
Pressure unit	MPa,bar, kgf ,mH20,PS,kPa,mmHg,mBAR,mmH20,Pa,inWC
Protection level	IP54
