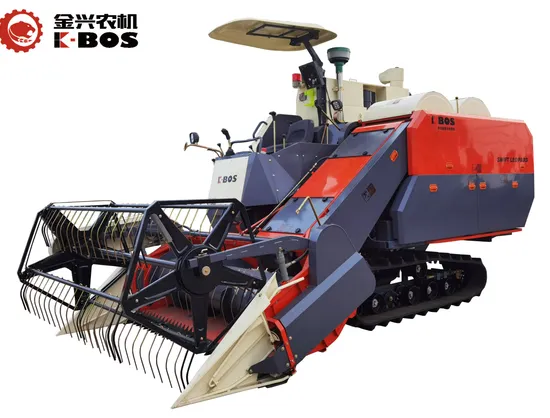

Deyang K-Bos Double Thresher Combine Harvester Model 4lz-3.0 for Rice/Paddy/Wheat/Soybean/Corn/Maize
| US$12,900.00-14,500.00 | 3 Pieces (MOQ) |
Basic Info.
Model NO.
4LZ-3.0
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Self Propelling
Certification
ISO9001:2008, CE, CNAS
Color
Red
Condition
New
Application Field
Agriculture
Transport Package
Naked
Trademark
K-BOS
Origin
Deyang, Sichuan, China
HS Code
84335100
Production Capacity
3000
Product Description
| FEATURES |
It was China first generation combine, long-lived market-tested mature combine and now updated;
Double threshing cylinders and bigger size header auger design, so rice is threshing completely and high purity. It performance very good especially for super tall rice (even lodging down) and high output crops, this model is over 10 years experience in China domestic market and abroad.
Multi-functional: Rice, Wheat, Soybean, Maize, Rapeseeds, and other granular crops.
High Purity: Strong Power, Threshing completely and high purity.
Adaptability: High chassis, with widder rubber track 500mm and 550mm, Strengthened chassis with very strong sqaure tubes, offer this model very good performance and longer duribility.
This machine is easy for operation and maintenance, it is a safety and energy-saving machine.
| SPECIFICATIONS |
| ITEM | PARAMETER | |
| Feeding Capacity( kg/s ) | 5 | |
| Overall Dimension Length×Width×Heights ( mm ): | 4890×2375×2450 | |
| Weight (kg) | 3100 | |
| Productivity of Operating Hours(hm²/h): | 0.27~0.75 | |
| Engine | Engine Model | 4D35ZT32/1004 |
| Rated Power ( kw/hp ) | 73.5KW/100HP, 65KW/88HP(Alternative) | |
| Engine Type | Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. | |
| Rated Rotation Speed (r/min) | 2400 | |
| Driving System | Type of Gearbox: | Hydraulic type + HST(3F, 3R) |
| Steering: | Clutch and Brake. | |
| Type of Brake: | By Foot. | |
| Traveling System | Rubber Track(mm): | 500x90x51, 550x90x51, 500x90x48(Optional) |
| Gauge | 1150 | |
| Theoretical Operating Speed ( km/h ) | 0~5.2 | |
| Minimum Ground Clearance (mm) | 240, 310(Optional) | |
| Cutting header | Height Adjustment | Hydaulics. |
| Cutting Width ( mm ) | 2300, 2200, 2000 | |
| Type of Blade | VI Type / Left and Right. | |
| Type of Header Auger | Telescopic Screw Conveying. | |
| Pickup Reel | Eccentric Tooth(off-centre), Diameter 900mm, Qty 5 pcs. | |
| Threshing System | Threshing System | Spiked Tooth Axial Flow |
| Threshing Cylinder Quantity | 2 | |
| Cylinder Diameter×Length ( mm ) | Main Cylinder φ540 x 1285, Assistant Cylinder φ540 x 650 | |
| Concave sieve | Grid type, 2 pcs | |
| Cleaning Mechanism Type | Air and Screen Cleaning, Vibrating Sieve adjustable | |
| Fan: | Centrifugal Type, Diameter 325, Qty 5 pcs | |
| Grain Storing | Option 1 Automatic Unloading | Big Grain Tank Capacity 1300L with 360° Unloading Auger |
| Option 2 Automatic Unloading | Big Grain Tank Capacity 1300L with 90° Unloading Auger | |
| Option 3 Manual Operation | Small Tank Capacity 460L by Manpower | |
| PRODUCT DETAILS |
| PACKING AND SHIPPING |
| OPEN FOR CUSTOMIZING |
| PRODUCTION ENVIROMENT |
