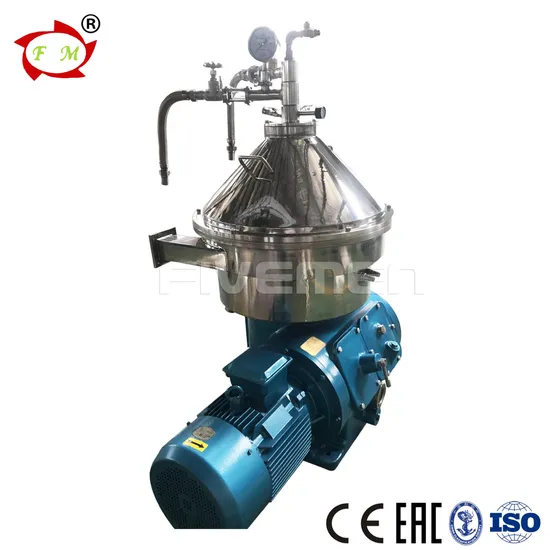

Self-Cleaning Disc Stack Centrifuge for Edible Oil Refinery

Product Description

Production
Application
Plant oil separator is the main equipment for a vegetable oil continuous refining system,can be used for plant oil refining, continuous degreasing, dephosphorization, de-soap, dehydration and other procedures.
Reducing the harmful ingredients in vegetable oil, to meet national standards.
For the coconut oil/ soybean oil / palm oil, we have exported to many countries.and have the working video of the separation.
Features
1. High Speed and high separation factor(7200 r/min )
2.running balance
3.simple operation
4.low oil consumption.
5. Automatically discharging
6. continuous operation.
7. All the key parts of the machine bearing all use imported bearing((brand SKF)
8.Drum adopts 0Cr13Ni4Mo material that is steel high purity, good performance.
9. In order to meet different requirements of production scale, the machine adopt bottom washing. Facilitate liquid seal and exclusive soap, the heart pump discharge the material, reducing system operating pressure. Regulate different specific gravity ring, can be suitable for all kinds of oil, so that better separation.
Working principle
ZYDH can separate rapid succession of solid liquid and liquid liquid ,which is a kind of vertical centrifuge.
A rotary drum is install in the upper end of vertical shaft, the driving device driven by a motor to rotate
at high speed. Drum have a set of a butterfly shaped parts mutually overlapped together.
Have a very small space left between the disc and disc. Suspension pour intodrum by feeding tube
which is located center of the drum.When the slurry flows past the clearance between the disc, solid particles in centrifuge sinking to the sediment is formed on the disc. Sediment falls of the disc along
the sliding surface of the disc and accumulate in the drum at the largest diameter.
The separation of the liquid exhaust drum from the liquid outlet .The function of the disc is to short
the distance between the settlement of solid particles or liquid droplets and to expand the area of settlement of the drum.Because the installation disc in the drum and greatly improves the separators' production capacity.
Moled and Parameters:

Model	Capacity	Basket Diameter (mm)	Rotation Rate of Drum (r/m)	Separation factor	Power (KW)	Slag discharge	Weight	Dimension
	(L/h)					way	(kg)	(mm*mm*mm)
ZYDH270	2000	270	7200	6950	4	automatic	550	865*645*1100
ZYDH315	3000	315	6500	7000	5.5	automatic	650	900*600*1150
ZYDH385	4000	385	6500	7500	7.5	automatic	750	1100*1050*1250
ZYDH430	5000	430	6000	8050	11	automatic	900	1200*950*1400
ZYDH470	8000	470	5800	8500	18.5	automatic	1100	1250*1000*1550

Item

Fuel oil

Lube oil

Distillate Fuel Oil

residual fuel oil

Brand oil

purified oil

Steam turbine oil

viscosity/(mm2/s)

1.9~5.5

5.5~24

60

80

120

180

380

460

600

100~120

61.2~74.8

40°C

50°C

40°C

40°C

Density/ (kg/mm3)(20°C)

<900

900~991

880~900

<900

separation temperature/°C

20

40

75

80

90

98

80

75

The ratio of actual productivity and rated capacity %

130

100

70~75

60~65

55~60

45~50

35~40

25~30

20~25

50~60

25~30

80~85

Note: the ratio of actual productivity and rated capacity is 100%

Application Occasion
Detailed images
Packing
Company information


If you need further information, please contact us freely, we will do our best to cooperate with you.
