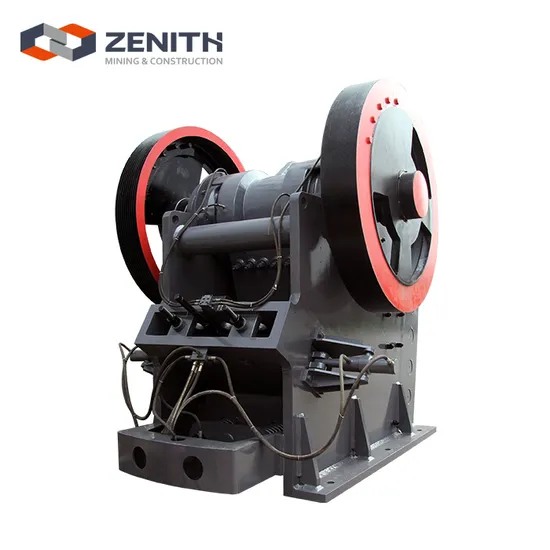

Pew860 Large Capacity Rock Jaw Crusher, Stone Crusher

Product Description

Rock Jaw Crusher, Stone Crusher introduction:
New generation crusher, pew series rock Jaw Crusher is born with innovative significance. It is newly designed and improved by our experts on basis of their more than 20 years' crusher manufacturing and designing experience. The unique design concept makes this series crusher achieve perfect combination between crushing efficiency and operating cost. Meanwhile, it has wide range of application, particularly suitable for crushing hard rock, such as basalt, river pebbles.
Rock Jaw Crusher, Stone Crusher Features:
1. Crushing cavity is deep without dead zone. It is easier to feed materials and yield higher output.
2. Jaw crusher is featured with high crushing ratio and sound epigranularity.
3. The lubricating system is safe and reliable. It makes it easier to replace components and requires little maintenance.
4. It is highly energy saving. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed.
5. To meet different client needs, the discharge gate is designed with a large adjusting range.
6. Jaw crusher causes low noise and creates little dust.
Rock Jaw Crusher, Stone Crusher Working Principle:

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Rock Jaw Crusher, Stone Crusher Applications:

Rock Jaw Crusher is a trusted and reliable brand for its high quality and good manufacturing. Jaw Crusher which is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 245Mpa, that is suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost. Rock Jaw Crusher, whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble, etc. Compression strength does not exceed 320Pa. This machine is suitable for mines, building materials, highway, railway, water conservancy and chemical industry, etc.
Rock Jaw Crusher, Stone Crusher technical data:

Model	Feed Inlet Size (mm)	Max Feed Size (mm)	Outlet Range (mm)	Capacity (t/h)	Motor Power (KW)	Weight (ton)	Overall Dimension(mm)
PEW760	760x1100	620	75-200	150-350	110-132	24	2600× 2500× 2200
PEW860	860x1100	720	100-225	200-500	132-160	32	3300× 2320× 3120
PEW1100	1100x1200	930	150-275	300-650	185-200	59.2	4140× 2660× 3560
PEW400x600	400x600	350	35-85	15-70	37	6.8	1920× 1460× 1840
PEW250x1200	250x1200	220	20-40	20-50	37	6	1400× 2050× 1310
PEW250x1000	250x1000	220	20-40	15-50	30	5.6	1400× 1850× 1310
