Home Built CNC Metal Sheet Coil Cutting and Slitting Machine Uncoil Cutting and Slitting Line

Product Description

Description:
Home built CNC metal sheet coil cutting and slitting machine uncoil cutting and slitting line
FEATRURES
High degree of automation, high shearing accuracy and fast running speed
Specification:
1. Coil parameter

1	/Matierial	Tinplate, TFS, GS
2	/Thinkness	0.16-0.4 mm (os≤300Mpa,ob≤300Mpa)
3	/Width	500-1000mm
4	/Coilinside diameter	Φ508mm
5	/Coilousiade diameter	≤Φ1600mm
6	/Coil weight	Max10T

2.Sheet parameter

1	/Coating	Double side(Once)
2	/Oven Temperature	180-220ºC
3	/Running Control	Automatic

3.Machine parameter

1	/Products width	40-1000mm
2	/Slitting pics	2-20pics
3	/Width precision	±0.05mm
4	/Straightness	0.5mm/1000mm(W≥100mm)
5	/Burr	5% Thinkness,Min0.03mm
6	/Decoil inner diameter	Φ510mm

4. Description

1	/Speed	0-50m/min
2	/Power	125KW
3	/Direction	/By buyer
4	( Size)	40mx5m(L*W)
5	/Source	AC 3×380V10%,60Hz±2%
6	/Compressed air	0.4-0.8Mpa, 1000L/min
7	N46/Hydraulic oil	500L/By buyer
8	/Color	/By buyer

9

Gas

LPG or LNG, 30-40kg/hour

Description:

1	/Uncoiler	1set	AC2.2KW	Hydraulic
2	/Coil carr	1set	AC0.75KW	Hydraulic
1	/Roller Feeder	1Set	AC3.7KW
2	/Joint Machine	1Set	AC5.5KW
3	/EPC machine	2Set
4	/Tension Machine	3set	AC15KW	Inventor control
5	/Washing part	1set	AC15KW
6	/Oven for washing and passivion	1set	AC7.5KW
7	/Passivation Coater	1set	AC 2.2KW*4	Inventor control
8	/Coater(Double side)	1set	AC1.5KW*4	Inventor control
9	/Oven	1set	AC11KW*2,AC2.2KW*4	LNG
10	/EDC device	1set
11	/Slitting machine	1set	AC7.5KW	Inventor control
12	,/Tension machine for slitting with guider roller and pre-separation	1set		Hydraulic
13	/Decoiler	1set	AC37KW	Inventor control
14	/ lift platform	2set		Air up-down
15	/Plate car	1set	AC0.75KW	Out-in by motor on the track
16	/Hydraulic pressure station	2set	AC2.2KW,AC1.5KW
17	/Control system	1set	PLC:Simens S7-200 Touch screen:Winview Inventor: Wiscontrol	PLC control

ITEMS
lead time:150-180 days
export port:shanghai port
guarantee:shanghai qiangda is reponsible for the installation, adjustment and technical instructions. but the buyer should bear all related fees, such as visa, transportation, accommodation fee and a daily salary of USD100/person.
warranty period:one year.
PICTURES
Parameters

Qiangda120
Model	Sheet Thickness(mm)	Width(mm)	No. of Slitting	Tolerance	Speed	Coil Weight(T) max
120-1x650	0.2-1	150-650	30-8	±0.05	0-120	3,5
120-1x850	0.2-1	300-850	30-8	±0.05	0-120	5,10
120-1x1050	0.2-1	300-050	30-8	±0.05	0-120	5,10
120-1x1300	0.2-1	400-1300	30-8	±0.05	0-120	10,15
120-2x650	0.3-2	150-650	30-8	±0.05	0-120	3,5
120-2x850	0.3-2	300-850	30-8	±0.05	0-120	5,10
120-2x1050	0.3-2	300-1050	30-8	±0.05	0-120	5,10
120-2x1300	0.3-2	400-1300	30-8	±0.05	0-120	10,15
120-2x1600	0.3-2	400-1600	30-8	±0.05	0-120	15,20
120-2x2000	0.3-2	500-2000	30-8	±0.05	0-120	15,20
120-3x1300	0.4-3	400-1300	30-6	±0.05	0-120	10,15
120-3x1600	0.4-3	400-1600	30-6	±0.05	0-120	15,20
120-3x2000	0.4-3	500-2000	30-6	±0.05	0-120	15,20
120-4x1300	0.5-4	400-1300	30-6	±0.05	0-120	10,15
120-4x1600	0.5-4	400-1600	30-6	±0.05	0-120	15,20
120-4x2000	0.5-4	500-2000	30-6	±0.05	0-120	15,20
120-6x1600	0.6-6	400-1600	30-5	±0.08	0-120	15,20
120-6x2000	0.6-6	500-2000	30-5	±0.08	0-120	15,20

Qiangda200
Model	Sheet Thickness(mm)	Width(mm)	No. of Slitting	Tolerance	Speed	Coil Weight(T) max
200-1x650	0.2-1	150-650	30-8	±0.05	0-200	3,5
200-1x850	0.2-1	300-850	30-8	±0.05	0-200	5,10
200-1x1050	0.2-1	300-050	30-8	±0.05	0-200	5,10
200-1x1300	0.2-1	400-1300	30-8	±0.05	0-200	10,15
200-2x650	0.3-2	150-650	30-8	±0.05	0-200	3,5
200-2x850	0.3-2	300-850	30-8	±0.05	0-200	5,10
200-2x1050	0.3-2	300-1050	30-8	±0.05	0-200	5,10
200-2x1300	0.3-2	400-1300	30-8	±0.05	0-200	10,15
200-2x1600	0.3-2	400-1600	30-8	±0.05	0-200	15,20
200-2x2000	0.3-2	500-2000	30-8	±0.05	0-200	15,20
200-3x1300	0.4-3	400-1300	30-6	±0.05	0-200	10,15
200-3x1600	0.4-3	400-1600	30-6	±0.05	0-200	15,20
200-3x2000	0.4-3	500-2000	30-6	±0.05	0-200	15,20
200-4x1300	0.5-4	400-1300	30-6	±0.05	0-200	10,15
200-4x1600	0.5-4	400-1600	30-6	±0.05	0-200	15,20
200-4x2000	0.5-4	500-2000	30-6	±0.05	0-200	15,20
200-6x1600	0.6-6	400-1600	30-5	±0.08	0-200	15,20
200-6x2000	0.6-6	500-2000	30-5	±0.08	0-200	15,20

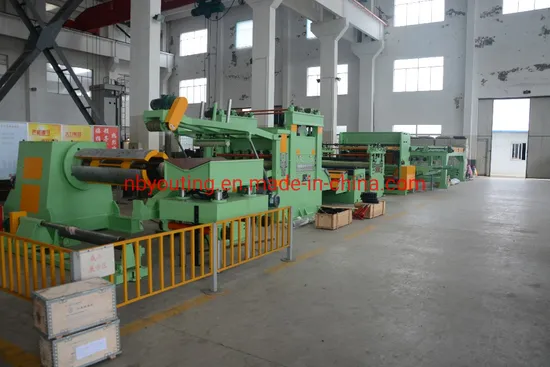

Installed for customers on site
