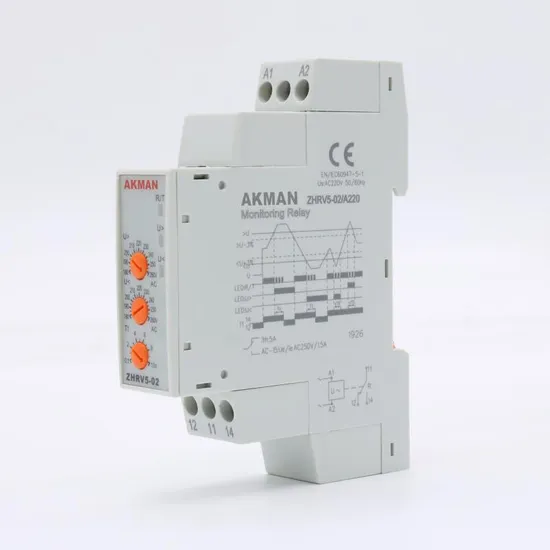

AC/DC Voltage Relay Monitoring Relay Protector Relay
| US$8.73-10.62 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
ZHRV5-02
Phase
1
Electricity Type
AC/DC
Number of Pole
1
Protective Characteristics
Enclosed Relay
Action Principle
Electronic Type
Size
Miniature
Type
Voltage Relay
Rated Supply Voltage
DC12V, DC24V,AC220V , Ad240
Rated Frequency
45~65Hz
Action Delay Setting Range
0.1s~10s
Contact Configuration Capacity(a)
8A
Contact Capacity
Ue/Le:250V/1.5A
Output Type
1c/O
DIN Rail Standard
Width 35mm
Transport Package
Stardard Packing
Specification
91.4*18*66.2mm
Trademark
AKMAN
Origin
Zhejiang China
HS Code
8536490000
Production Capacity
10000PCS/Week
Product Description
Applications
Used in single-phase control system,when the power supply is abnormal(voltage too high or too low),cut off the power to protect electrical equipment from damage.
Built-in microprocessors,true RMS measurement,voltage measurement accuracy ≤1%.Measuring frequency 45Hz-65Hz,knob setting,LED indicator shows working status.Lock function with fault status,DIN rail mounting.
Model Description
Model Selection Table
| Model | Over-voltage | Under-voltage | Action delay | Rated supply voltage code | Rated supply voltage | Working voltage range | Setting range |
| ZHRV5-02 | + | + | 0.1s~10s | D12 | DC 12V | DC7-20V | DC9V~15V |
| AD48 | AC/DC 24V~48V | AC/DC 15V~100V | AC/DC 20V~80V | ||||
| AD240 | AC/DC 110V~240V | AC/DC 50V~270V | AC/DC 65V~260V | ||||
| A220 | AC 220V | AC160V~270V | AC180V~260V |
"+"Function is available.
Technical Parameters
| Measuring range | 45Hz~65Hz,0 |
| Fixed hysteresis value | 3% of Threshold value |
| Action delay setting range | 0.1s~10s |
| Voltage measurement error | ≤1% Entire setting range |
| Delay error | ±10%+0.1s |
| Knob setting accuracy | 1%Scale value |
| Rated insulation voltage | 460V |
| Contact configuration capacity(A) | 8A |
| IP Class | IP20 |
| Class of pollution | 3 |
| Electrical Life | 105 |
| Mechanical life | 106 |
| Altitude | ≤2000m |
| Allowable relative humidity | ≤50%(40ºC)(No condensation) |
| Use category | AC-15 |
| Contact capacity | Ue/le:250V/1.5A |
| Output type | 1C/O |
| DIN rail Standard | Width 35mm(IEC/EN60715) |
Function diagram Dimensions(mm) Wiring Diagram
Model significance:
ZHRV5-02/A220 voltage relay,rated supply voltage AC220V,with protection of over-voltage and under-voltage,operating range AC160V~270V,setting range 180V-260V,0.1s~10s adjustable.
