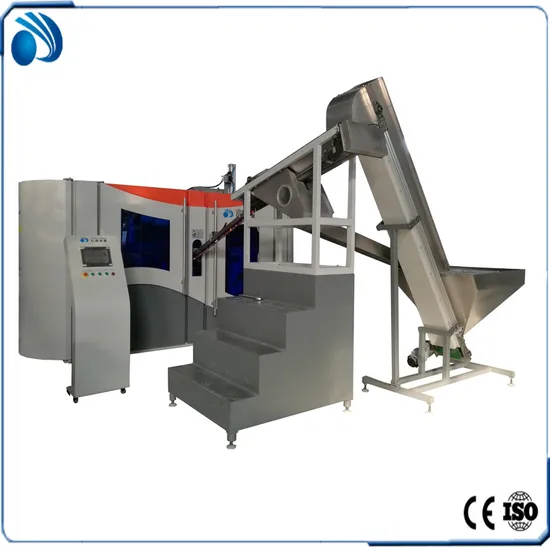

9000BPH Automatic Blowing Machine for Pet Preform for Sale
FG series automatic blowing machine for pet bottle is high-speed linear PET bottle blowing machines. The single cavity speed can reach 1500~2000 BPH and 6 cavities is around 9000~10000BPH, which make more capacity than European machine. FG series water bottle blowing machine include three model right now: FG4 (4-cavity),FG6(6-cavity),FG8 (8-cavity), and the max speed of FG8 could be 13000BPH. It is developed totally independently, has our own intellectual property rights, and has obtained more than 8 national patents.
FG series automatic blowing machine for pet bottle is a completely new generation of linear blowing machine, distinguished by its high speed, low power and low compressed air consumption, featured by the excellent structure design, small space occupation, less noise and high stability, meanwhile conforms to national beverage sanitary standards. This machine symbolizes the highest level of national linear blowing machines. It is the ideal pet bottle blowing machine for medium and large enterprises.
For more details about FG series plastic water bottle blowing machine, please check the video at https://youtu.be/0aHfd_-MFdA.
2. Detail specification of FG series automatic blowing machine for pet bottle

Model			FG4	FG6	FG8	Remark
Mold number(piece)			4	6	8
Capacity(BPH)			6500~8000	9000~10000	12000~13000
Bottle specification	Max volume(mL)		2000	2000	750
	Max height(mm)		328	328	328
	Round bottle max diameter(mm)		105	105	105
	Square bottle max diagonal(mm)		115	115	115
Preform specification	Suitable inner bottle neck(mm)		20--25	20--25	20--25
	Max preform length(mm)		150	150	150
Electricity	Total installation power(kW)		51	51	97
	Heating oven real power(kW)		25	30	45
	Voltage/frequency(V/Hz)		380(50Hz)	380(50Hz)	380(50Hz)
Compressed air	Pressure(bar)		30	30	30
Cooling water	Mold water	Pressure(bar)	4-6	4-6	4-6	Water chiller (5HP)
		Temperature regulation range(°C)	6--13	6--13	6--13
	Oven water	Pressure(bar)	4-6	4-6	4-6	Water chiller (5HP)
		Temperature regulation range(°C)	6-13	6-13	6-13
Machine specification	Machine dimension(m)(L*W*H)		3.3X1X2.3	4.3X1X2.3	4.8X1X2.3
	Machine weight(Kg)		3200	3800	4500

3. Advantage of FG series automatic blowing machine for pet bottle
a. Servo driving and cam linking blowing section:
It adopt unique cam linking system to integrate movement of mold-opening, mold-locking and bottom mold-elevating in one movement. Equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity. The complete movements of PET blowing only takes 2 seconds. With this new structure, this Fully automatic pet bottle blowing machine will work more stable and reliable, and make higher output than Europe pet blower.
b. Small performs distance heating system
Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption. Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
c. Efficient and soft perform inlet system
By rotary wheel and soft preform inlet/outlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protected.
d. Modularized design conception
Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts. For skilled workers, it only take 30 minutes to change the bottle mold.
4. Optional item for automatic blowing machine for pet bottle
1. Exploded bottles ejection unit
During the blowing process, if the bottle burst, bad bottles can be automatically removed. This prevents the bad bottles from entering the filling machine.
2. HP air recovery system
After the bottle blowing, high-pressure air can be recycled and used again for the pre-blowing and machine physical movement.
3. Oven and preform temperature detection system
Detection system detects temperature of oven and the temperature of performs. When the preform temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.
