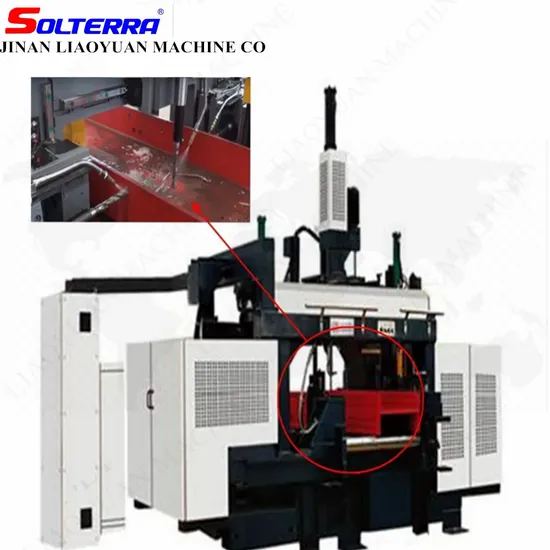

Peb Construction Steel Beam Drilling Machine Structural Steel Fabrication CNC Multi--Spindle H Beam Drilling Machine

Product Description

PEB Construction Steel Beam Drilling Machine Structural Steel Fabrication CNC Multi--spindle H Beam Drilling Machine
MACHINE APPLICATION
1. The machine is predominantly designed for the precise and efficient drilling of H-shaped steel, box beams, and channel steel. It's an invaluable asset in the construction of steel structures, bridges, multi-level parking garages, and petroleum platforms, ensuring unparalleled performance and reliability in these demanding applications.
MACHINE FEATURES
PREMIUM MAIN FEATURES: Advanced Seven-Axis CNC Control System
Efficient Three-Sided H-Beam Drilling Simultaneously
Seamless Direct Conversion Between CAD and CAM
The Ultimate Equipment for Comprehensive Steel Structure Processing
TECHNICAL PARAMETERS
TECHNICAL INFORMATION:

Model		TDD1000
H beam size (Web Height x flange width ) mm	Max.	1000 x 500
	Min.	150 x 75
Length (mm)	Auto feeding	≥2700
	Manual feeding	≥610
Feeding stroke(mm)	Vertical drilling unit	325
	Left and right drilling unit	140
Displacement of horizontal spindle(mm)	In the direction of workpiece length	520
	Above vertical base level	20~480
Rated power(KW)		28
Overall dimension(L x W x Hmm)		4450 x 3050x 3520
Weight(Kg)		≈7000 (Appr.)

PACKAGES AND DELIVERY
LIAOYUAN CO' SERVICE
Our Comprehensive Service Offering
Pre-Sales Service After-Sales Service *Expert Inquiry and Consulting Support* Comprehensive Training on Machine Installation
* 24/7 Support via Phone, Email, and In-Person Assistance * Detailed Training on Machine Operation
* Exclusive Factory Tours* Continued Customer Engagement Post-Purchase
* Electrical & Mechanical Technical Support * Never Ignore Customer Calls
* Easy Parts Ordering* Engineers Ready to Service Machinery
Overseas
LIAOYUAN COMPANY PROFILE
JINAN LIAOYUAN MACHINE COMPANY INFORMATION Jinan Liaoyuan Machine Co is strategically located in the vibrant industrial hub of Jinan, Shandong province, China. As a distinguished global leader in the manufacture of premium CNC machine tools, we have dedicated over two decades to producing top-tier CNC machinery. From our humble beginnings, we have evolved into a dominant force in the CNC industry in Shandong. Our expertise spans the research, development, and production of an extensive range of CNC machines, including the CNC Angle Steel Punching machine, CNC Angle Steel Drilling machine, CNC Plate Drilling Cutting machine, CNC Beam Drilling Marking Beveling machine, CNC Band Saw Cutting Machine, and various CNC machining centers. At Jinan Liaoyuan, we are committed to delivering turnkey solutions and impeccable service to meet all your production requirements.
JINAN LIAOYUANCNC HISTORY * Founding period (1991-2008)
* Continuous growth (2008-2013)
* Innovation expansion (2013-2017)
* JINAN LIAOYUAN MACHINE today
LIAOYUAN MACHINE QUALIFICATION
The cutting-edge machines crafted by JINAN LIAOYUAN are revolutionizing a wide array of industries, spanning from steel structures, angle towers, and metal constructions, to pipes, pressure vessels, and ship construction. Our innovations are also pivotal in bridge construction, wind energy, and the heat exchanger industry. Additionally, our versatile equipment serves numerous other specialized fields, ensuring robust performance and unmatched reliability.
FAQ
Question 1. Are you a Manufacturer or a trading company?
Answer 1. We are not just a trading company; we are the premier Machine Manufacturer. Our expertise encompasses raw material casting, precision machine body processing, meticulous machine assembling, professional painting, and rigorous machine quality inspection, among other essential processes.
Question 2. What is the minimum quantity for order?
Answer 2: Normally, one set. Additionally, we offer attractive discounts if you purchase a complete set of machines.
Question 3. Do you have stock products ready for delivery?
Answer 3. We maintain a substantial inventory of machines in stock, ensuring rapid delivery times for our customers.
Question 4. How do you deliver the finished products?
Answer 4. For Full Container Load (FCL), we deliver by sea.
For Less than Container Load (LCL), we deliver by sea and, for urgent requirements, by plane.
For spare parts, we deliver via courier services such as ***, FedEx, DHL, UPS, EMS, and others.
