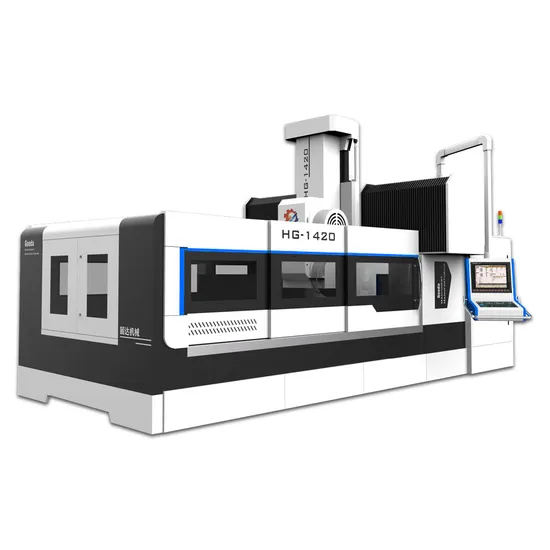

Grinder/CNC Grinder/CNC Grinding Machine/CNC Gantry Grinder/CNC Gantry Grinding Machine/High Accuracy CNC Grinder/Fanuc Controller Grinder/Precise Mold Grinder
| US$100,000.00-280,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
HG-1625
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Surface Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Grinding Capacity
2500-1400-500mm
Certificate
CE & ISO9001 & TUV
Finished Accuracy
0.01mm/1000mm
Application
Precise Mold Plates
Transport Package
Steel Box
Specification
9500*4200mm
Trademark
GooDa Manufacturer
Origin
Dongguan
HS Code
8460909000
Production Capacity
600
Product Description
HG-1625 Grinder/CNC grinder/CNC grinding machine/CNC gantry grinder/CNC gantry grinding machine/High accuracy cnc grinder/Fanuc controller grinder/Precise mold grinderMain Function:
CNC system once setting and automatic guides where work-piece loading place, automatic measurement, automatic process from rough grinding to finished grinding, which can reduce working strength of operator and increase productivity, maintain high accuracy for dimension and flatness.
Main technical parameters
| Specifications of CNC Precision gantry grinding Machine HG-1625NC | ||
| Items | Name | Specification |
| GooDa CNC Precision gantry grinding Machine HG-1625NC | HG-1625NC | |
Cutting capacity | Control axis number | 3 |
| Rough grinding depth mm | 0.05 | |
| Finished grinding depth mm | 0.005 | |
| Gantry effective width mm | 1600 | |
| Max. grinding length & width mm | 2500-1400 | |
| Max thickness of workpiece mm | 500 | |
| Worktable | Dimensions mm | 2500*1200 |
| Max loading weight Kg | 6000 | |
| Magnetic chuck System | Permanent magnet | |
| Bearing Drive Spindle grinding | Spindle size mm: | Ф170 |
| Spindle speed(Infinitely variable speeds) rpm: | 0-1400 | |
| Spindle power Kw | 18.5 | |
| Grinding wheel size mm | 500*80*203 | |
| X axis Hydraulic unit With oil cooler | Hydraulic unit motor power Kw | 15 |
| Hydraulic oil volumn L | 700 | |
| Max. use pressure kg/cm3 | 35 | |
| Y/Z axis | Y/Z axis motor power Kw | 3.0/2.0 |
| Y/Z Feed speed mm/min | 5-3000 | |
| Y/Z Min. moving unit mm | 0.005 | |
| Accuracy | Flatness mm/1000mm | 0.01 |
| Accuracy for dimension mm/1000mm | 0.01 | |
| Grinded surface roughness μm | Ra 0.63 | |
| Tank capacity | Lubrication oil tank L | 3 |
| Coolant unit | Grinding workpiece cooling unit L | 100 |
| Others | Power | AC380V/200 45KVA |
| Space | 6.2*3.5 | |
| Machine net weight KG | 23000 | |
Main part of CNC CNC Precision gantry grinding Machine HG-1625NC
| Sort | Name | Quantity | Origin | Remark |
| Machinery | Worktable ball screw | 2 | Taiwan Hiwin | Steady transmission,High accuracy, Wear-proof |
| Guide rail | 3 | High frequency hardened rail of Quenching | Good bearing, Heavy cutting | |
| Bearing Drive Spindle | 1 | Taiwan POSA | Low noise, high strength, Taiwan famous brand | |
| Flexible stainless steel plate shield of worktable | 2 | Domestic | High strength, Strong durability, dust-proof, Protect the guide rail and ball screw. | |
| Base casting | 1 | HT300 | Good stability, excellent wear-ability | |
| Automatic lubricating machine | 1 | Domestic | Electronic-self-lubrication, Quantitative oil supply to the each part | |
| Oil line | 4 | Domestic | Copper tube | |
| Bearing | 18 | Japan NACHI | World famous brand, High accuracy, High quality | |
| Electrical appliances | CNC system | 1 | Japan FANUC | High accuracy Top brand of CNC High accuracy |
| Servo motor | 2 | Japan FANUC | High accuracy Top brand of CNC High accuracy | |
| Powerful Magnetic chuck System | 3 | Talis | Famous brand,High magnetic force | |
| Spindle Motor | 1 | CTB | Multitronic, Meet the requirements of different processing speed | |
| AC contactor | 1 | Schneider | Famous brand, steady property | |
| Relay | 1 | Schneider |
Duplex cnc milling machine ,made in china,gained 38 patent certifications
14 years experience, 3years guarantee.
high efficiency, high accuracy , high quality.
GooDa CNC series milling machine are your best choice!
Contact me:
International technician,sales& Service:
Dongguan GooDa Machinery Manufacturing Co.,Ltd
Address: No.137, F Building Kairuifeng Industial Park, Changdong RD,Banshi Village,Changping Town, Dongguang City, GD, China
Website: http://goodacnc.en.made-in-china.com
