Gutter Downspout Pipe Clod Roll Forming Machine

Product Description

Gutter Downspout Pipe clod Roll Forming Machine
The galvanized drop -type metal drainage ditch molding machine can bend the rolling pipe and allow the drain pipe to connect to the whole. The working hours of rolling products are longer than plastic tubes, not aging. It can make the project more integrated and help enhance the image of all projects. The device is controlled by PLC, the frequency of AC and adjusting speed technology, and aware of the continuous production of continuous production. Therefore, it is indeed a new type of energy saving and efficient production equipment for steel structures.

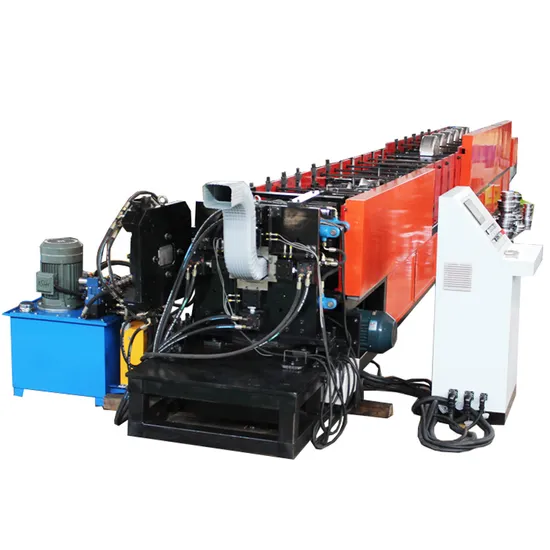

Detailed Photos

Detailed Parameters

Downspout Rain Gutter Roll Forming Machine Aluminum Down Pipe Making Machine

(1). Forming stations: 20Raws

(2). Roller material: 45# steel with CNC machining and surface is being hard chrome;

(3). Diameter of shaft: ¢70mm;

(4). Material of shaft: solid 45# steel with grinding process;

(5). Frame of the machine: welded with 350H section steel;

(6). Wall panel thickness: 18mm;

(7). Forming motor power: 7.5KW;

(8). Hydraulic station motor power: 4KW;

(9). Control system: PLC brand is DELTA from Taiwan;

(10). Material of cutting blade: Cr12MoV with hard treatment, HRC52-68;

(11). Driving mode: single chain 1 inch;

(12). Forming speed: 0-15m/min;

(13). Power supply: 380V, 50HZ, 3 PHASES;

(14). Dimensions of forming machine: 10000mm*1200mm*1000mm (approximate).

Summary
1. Guarantee
In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.
2. Installation
If necessary, we can send one technician to your factory to install the machine; you need assist our technician to get the visa and pay for the two-way flight tickets, local accommodation (at least three-star hotel with air condition), food, visa cost. And you need pay 200USD/day for technician extra. The total time will be caculated as per the time that shown on the fright tickets when our technician leaves China and arrives back to China.

The downpipe forming machine we produce is customized according to the specific requirements of customers,such as specification and raw materials. The machine is installed and tested before leaving the factory.After receiving the machine, the customer can start production once connect wires and tubes.We randomly send instructions to tell how to operate. Of course, we also have corresponding videos for reference.Technicians Can also be sent to customer factory for guidance and training if necessary.The downpipe roll forming machine also work with elbow bending machine,which make flat pipe to curve according to construction requirement.
