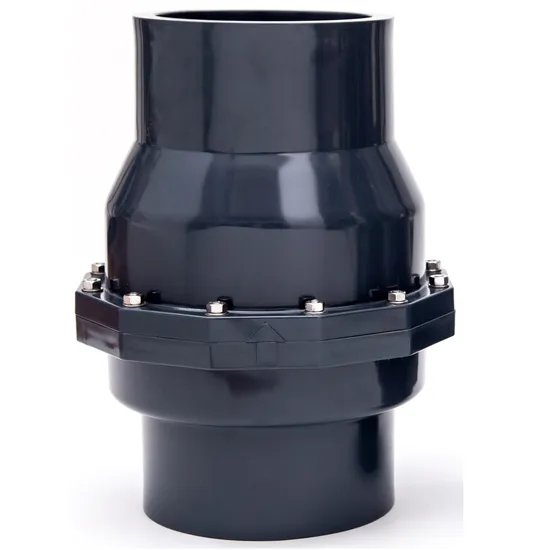

High Quality 6" Gray Socket End Industrial PVC Swing Check Valve ANSI UPVC 6 Inch Water Pipe Check Valve Plastic Non Return (NRV) Swing Check Valve

Product Description

Tianjin Runke Plastic Tech Co., Ltd. has 10 sets of professional and large-scale injection molding equipment, more than 30 sets of professional processing equipment, and 4 sets of professional pressure testing equipment.
Each sealing surface is 100% machined, and each sealing link is 100% pressure tested one by one.
The company does not use recycled plastics or recycled rubber to ensure that the products meet the mechanical performance, sealing performance and service life.
The company mainly produces four series of more than 50 kinds of PVC-U, PVC-C, FR-PP, PP-R butterfly valves, PVC-U ball valves, PVC-U check valves, PVC-U bottom valves, with an annual production of 600,000 sets of valves.
PVC-U butterfly valve, PVC-U check valve, PVC-U ball valve comply with European DIN standard, American standard, Japanese standard. We can produce large size valves, product size ranges from DN15mm to DN400mm
PVC Swing Check Valve according to DIN,ANSI,JIS Standard DN20-DN150 ( ¾" ~ 6" ) Working Pressure PN10.
PVC 2 Pieces Compact Ball Valve according to JIS Standard DN50-DN100 ( 2" ~ 4" ) Working Pressure PN10;
PVC Wafer Check Valve according to DIN ANSI JIS Standard DN150-DN300 ( 6" ~ 12" ) Working Pressure PN10;
PVC Foot Valve according to DIN Standard with Specification DN20-DN150 ( ¾" ~ 6" ) Working Pressure PN10;
PVC True Union Ball Valve DIN, ANSI, JIS Standard with BSPT & NPT Threaded DN15-DN100 ( ½"~4" ) Working Pressure PN16 & PN10;
PVC Pressure Pipe Fittings for Water Supply according to DIN Standard 8063 PN10;
6" Check Valve
Check Valve ANSI
Water Check Valve
Non Return Valve (NRV) Industrial Check Valve
Swing Check Valve
Water Check Valve
Swing Check Valve
Plastic Swing Check Valve
Gray Check Valve
Socket Check Valve
PVC Swing Check Valve
Water Pipe Check Valve
Plastic Check Valve

PVC Swing Check Valve with DIN ANSI JIS BS Standard DN20 (3/4") - DN150 (6")
Working Pressure: 150PSI PN1.0MPa
Standard: DIN ANSI JIS BS Standard Socket End
Dual-Use in Vertical / Horizontal
Data Sheet of PVC-U Swing Check Valve

No.	Parts	Quantity	Material
1	Lower Body	1	PVC-U
2	Body Shaft	1	PVC-M
3	Body Seal	1	EPDM
4	Body Flapper	1	PVC-M
5	Counterweight	1	C.S.45
6	Flapper Cap	2	PVC-U
7	Seat Seal	1	EPDM
8	Upper Body	1	PVC-U
9	Flow Arrow	1	PVC-U
10	Body Bolts	4 -12	S.S.304 / S.S.316

DN	Inch	Mpa	Ød1	Ød2				ØD3	L1	L	W	n-MxL2
DN	Inch	Mpa	Ød1	DIN	ANSI	JIS	BS	ØD3	L1	L	W	n-MxL2
DN20	3/4"	1.0	18	25	26.67	26	26.6	36	23	96	64	4-M6x25
DN25	1"	1.0	23	32	33.4	32	33.4	46	25	107	75	4-M6x25
DN32	1-1/4"	1.0	31	40	42.16	38	42.1	55	35	129	110	6-M6x25
DN40	1-1/2"	1.0	39	50	48.26	48	48.1	65	37	146	120	6-M6x25
DN50	2"	1.0	48	63	60.28	60	60.2	80	38	161	141	6-M6x25
DN65	2-1/2"	1.0	64	75	73.03	76	75.2	94	45	193	152	8-M8x30
DN80	3"	1.0	78	90	88.9	89	88.7	112	55	230	178	8-M8x30
DN100	4"	1.0	98	110	114.3	114	114.1	135	74	296	201	8-M8x30
DN150	6"	1.0	146	160	168.28	165	168	194	90	375	292	12-M8x40

6" Industrial PVC Swing Check Valve requires the use of solvent cement on the slip socket ends during installation. Great for commercial and industrial water systems, this valve offers a durable solution to prevent backflow into the system. Backflow can cause many issues including flooding and damage.
For use in irrigation, swimming pool & commercial plumbing applications to prevent backflow. The open position allows for unobstructed continuous flow with minimal head loss.All check valves must be installed with the flow-arrow pointing in the direction of the flow of the system and with the flow arrow on the top side of the valve.

PVC Swing Check Valve ANSI DIN BS JIS Standard for Water
Dual Use in Vertical or in Horizontal
Socket End
DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10
Feature
Good Corrosion Resistance.
Excellent Sealing Properties.
Full Flow. Less Pressure Loss.
Open Pressure Lower 0.01kg/cm2
No Metal Parts are Exposed to Fluid.
Can be Dual-Use in Vertical or Horizontal.
S.S. 304 or 316 Bolt Connection Valve Body
Outstanding Low Pressure Sealing Performance.
Super Thickness with High Strength of the Valve Body
Flapper & Shaft with Impact Resistant PVC-M Material can Withstand 1.6MPa Recoil Pressure Shock.
CAUTION:
It is industrial water use, not suitable for chemical process.
Mounted with a fluid flow direction indicated by the arrow
Not suitable for gas entrained liquid, solid-liquid entrainment fluid
Installed horizontally, the arrow indicating surface must be upward
PVC-U Wafer Check Valve DN80-DN400 ( 3"- 16" ) DIN ANSI JIS BS Standard
Working Pressure:
DN80 - DN150 150PSI PN1.0MPa DN200 - DN400 90PSI PN0.6MPa
Standard:
DIN ANSI JIS BS Standard
Dual-Use in Vertical / Horizontal
Feature:
Can Be Vertical / Horizontal Dual-Use.
With DIN / GB (Metric and GB Standard) PN1.0MPa Wafer Flange.
Working Pressure:DN80-DN150 PN1.0MPa, DN200-DN400 PN0.6MPa.
Space-saving, Easy to be replaced. Thick Design, High Strength & Durable
Provide a Complete Set of Check Valve with Flanges ( Only DIN Standard )

Cautions:
Must be Installed in Accordance with the Flow Arrow.
The Stationary Ring Must be Installed Upwards When Used Horizontally.
Do not Install the Valve at a Distance Lower than 5 Times x DN of Pump Outlet.
PVC-U Swing Check Valve with DIN Standard Flange
DN125(Dia.140mm)-DN200(Dia.200mm)
Working Pressure: 150PSI PN1.0MPa
Standard: DIN Standard
Socket End
Dual-Use in Vertical / Horizontal
Good Corrosion Resistance
Feature
Excellent Sealing Properties.
Open Pressure Lower 0.01kg/cm2
Can be Dual-Use in Vertical or Horizontal
Use 1.0MPa Flange for Pipeline Installation.
S.S. 304 or 316 Bolt Connection Valve Body.
Outstanding Low-Pressure Sealing Performance.
Super Thickness with High Strength of the Valve Body.
No Metal Parts are Exposed to Fluid. Good Corrosion Resistance
Flapper & Shaft with PVC-M Material can Withstand 1.6MPa Recoil Pressure Shock
Use 1.0MPa Flange for Pipeline Installation
