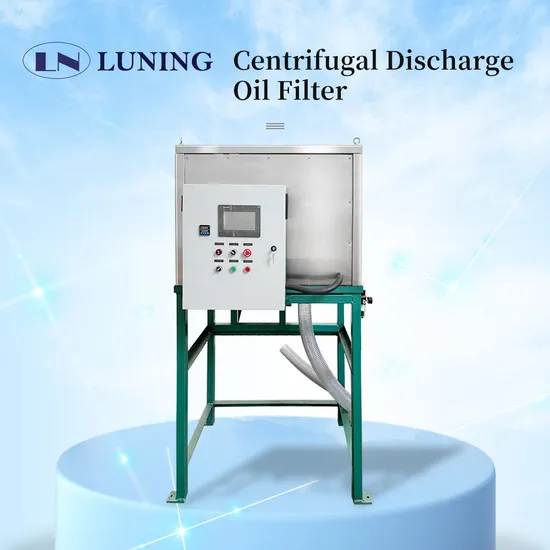

Wholesale High Efficiency Automatic Centrifugal Discharge Water/Oil Filter for Lubricating/Hydraulic/Turbine/Fuel/Diesel/Engine Industrial Oil

Product Description

Product Description The fully automatic centrifugal discharge oil filter is widely used in industrial production processes to separate impurities from oil/water-based objects, prolong the use time of oil, and save production costs for enterprises without replacing oil.
Equipment functions
1. The oil/water-based objects that need to be filtered enter the centrifuge through an auxiliary pump.
2. Oil is separated by high-speed centrifugal separation, and solid materials adhere to the inner wall of the drum. The separated oil flows back to the oil tank.
3. According to the set oiling time, the solid material on the inner wall of the drum is subjected to high-speed degreasing treatment.
After the oil removal is completed, the centrifuge speed decreases, and the equipment automatically starts the slag discharge function. The slag discharge door opens, and the scraper starts the slag cleaning program. The cleaned waste falls into the waste bin below the centrifuge.
After the waste is discharged from the centrifuge, the slag discharge door automatically closes and the frequency converter automatically starts the next cycle.
6. The equipment is easy to operate and does not require dedicated personnel to guard.
7. If the equipment malfunctions, it will automatically sound an alarm and stop running.
Product Parameters

GSYL-350
Size	Weight	Start Mode	Control Program	Operation Panel	Power	Speed	Rated Flow Rate	Working Pressure	Operation Temperature
1450×1250×1200	418kg	Inverter startup	PLC	Touch Screen	6.2kw	3480/min	3.3m³/h	0.2~0.4mpa	0~110ºC

The fully automatic centrifugal unloading oil filter has the following advantages:
1. Efficient Separation : Centrifugal oil filters use the centrifugal force generated by high-speed rotation to quickly and effectively separate solid impurities and liquids in oil, improving the purity of oil products.
2. Automatic operation : The entire filtration process is automatically completed, including unloading and slag discharge, reducing manual operation and improving work efficiency.
3. No consumables : Unlike traditional filtration methods, centrifugal oil filters do not require additional filtration media, reducing operating costs.
4. Energy saving and Environmental Protection: The equipment is designed with a focus on energy conservation, resulting in low energy consumption during operation and meeting environmental protection requirements.
5. Easy maintenance : Due to its simple structure, the maintenance and cleaning of the fully automatic centrifugal unloading oil filter are relatively easy.
6. Wide applicability: It can handle various types of oil, such as lubricating oil, hydraulic oil, turbine oil, etc., and is suitable for different industrial applications.
7. High filtration accuracy: Some advanced models of centrifugal oil filters can achieve very high filtration accuracy, such as 3 microns, to ensure the quality of oil products.
8. Space saving : Compared to other types of oil filtration equipment, centrifugal oil filters are usually smaller in size, making them easier to install and use in limited spaces.
9. Good stability : Adopting a PLC control system to ensure stable equipment operation and reduce failure rates.
Through these advantages, the fully automatic centrifugal discharge oil filter not only improves oil quality and reduces production costs, but also brings operational convenience and economic benefits to enterprises. Detailed Photos
