186f Diesel Agricultural Machinery Farm Equipment Garden Tillers Weeder Rotary Cultivator Weederpower Tiller

Product Description

Product Description

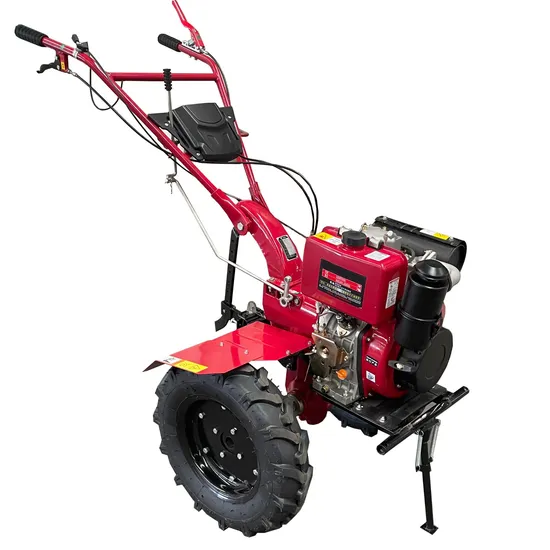

186F Diesel Power Rotary Tiller
The compact structure of the 186F power tiller makes it flexible and convenient for field work, and it can easily travel between narrow rows of fields. Its fast, slow and reverse speed parameters have been carefully set and are very reasonable. It shows excellent adaptability in different land conditions. Whether in soft soil or hard soil, it can be adjusted to the right gear according to the actual needs, so as to maintain good ploughing effect.
The oil engine produces high torque at low speeds, which gives the power tiller excellent power performance when performing heavy-duty work such as ploughing and tilling.
The power tiller adopts gear transmission, which runs smoothly with relatively low vibration and noise, helping to prolong the service life of the power tiller and also providing a more comfortable working environment for the operator.

Product name			186F Diesel Power Tiller
Model Name			1WG6.5-135FQ-ZC
Specification Model			Handheld
Matching Engine	Model Name		186F Diesel engine
	Structure Type		Forced air-cooled, four-stroke, swashplate, single-cylinder
	Nominal Power		6.5 kW
	Nominal Speed		3600 r/min
	Starting Mode		Hand pull start
	Fuel Type		Diesel
Overall dimension(mm)			1740x1350x800 mm
Weights			110kg
Transmission mode			Gear
Connection mode			Direct connection
Adjustment of handrail		Horizontal direction	0 °
		Vertical direction	100°
Knife and roller		speed	Fast gear F:145 r/min Slow gear S:83 r/min
		Maximum turning radius	180 mm
		Total number of knives installed	24
Type of rotary ploughing knives			Dryland Knife
Main clutch		Type	Friction blade type
		Condition	Normally open
Ploughing width			1350 mm
Ploughing depth			≥100 mm
Working speed			0.1~0.3 m/s
Hourly productivity			≥0.04 hm²
Fuel consumption per unit of working area			≤30 kg/hm ²

Detailed Photos

★ Durability and Reliability
The power tiller as a whole adopts reasonable design, light weight, good effect, low fuel consumption, high efficiency, strong horsepower, save time and labour.
★ High Reliability
Gear transmission without belt, no loss of power output, more powerful horsepower. The gearbox adopts thickened one-piece casting gearbox, no deformation and oil leakage, longer service life.
★ Strong Power Output
The mechanical structure of the starter is relatively stable and is not easily affected by electronic failures, low battery power and other problems. Stable starting performance is maintained in harsh working environments, such as wet and dusty fields.
Company Profile
Chongqing Eagle Sino Machinery Co.,Ltd, specializing in the production of power tillers, power weeder, cultivator, water pump, generators, brush cutters is located in No. 178 longtang dadao, longshui, dazu, chongqing, China. With a commitment to quality and innovation, we have established ourselves as a leading manufacturer in the agricultural machinery industry. Our factory covers an extensive area and is equipped with advanced production facilities and technologies. Our state-of-the-art assembly lines ensure efficient and precise manufacturing processes, allowing us to meet the growing market demand. Our team of highly skilled engineers and technicians possess extensive expertise in the design and development of micro tillers.
They constantly strive to improve the performance, durability, and functionality of our products to provide farmers with reliable and efficient tools for their agricultural operations. In addition to our focus on quality, we also place great emphasis on customer service. Our dedicated sales and support teams are always ready to assist customers with their inquiries and provide prompt after-sales support. With years of experience and a passion for excellence, our products are dedicated to delivering high-quality products and services to customers around the world, contributing to the modernization and efficiency of agricultural production.
Packaging & Shipping
FAQ
Q1:1 Do you support OEM/ODM?
A1:Yes.We can offer OEM/ODM service.
Q2:Are the engines of rotary tiller machines customizable?
A2:Yes. We can customize the engine according to customer's design.
Q3:What is your MOQ of power tiller?And how long is your processing time?
A3:1 sets. If there is no stock, it will be 10-20 working days, if there is stock, it can be sent out immediately.
Q4:How long is your warranty?
A4:1 year or 6 months warranty whichever comes first except the wearing and tearing parts.
Q5: What are your terms of payment?
A5: For large purchases, we can accept 30% deposit and 70% final payment when the goods are ready.
Q6: How do you ship and how long does it take to get there?
A6:We usually ship by express or ocean freight, other shipping ways are also available.
Q7:How do you handle product failures?
A7:First of all, our products are manufactured under a strict quality control system. And there is a strict inspection process before shipment. The rate of defective products and low. For defective batches, we will repair and resend them to you, or we can discuss a solution, including a re-recall, depending on the actual situation.
