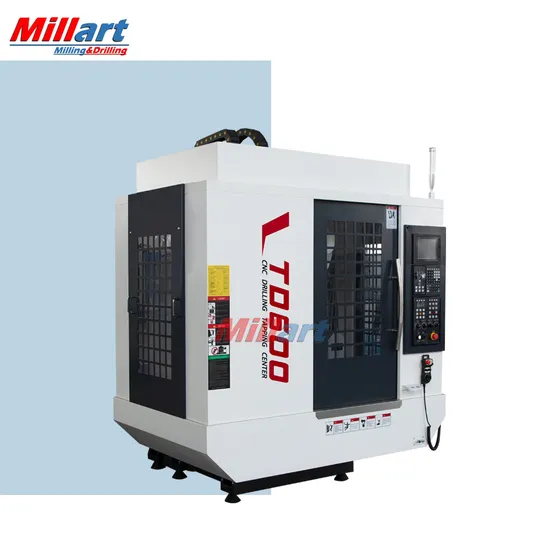

High Precision CNC Vertical Machining Center, Td600 Td700 CNC Drilling Tapping Machine

Product Description

Product Description
Technical parameter :
Feature :
High strength and good quality cast iron.
Precision linear guides for X/Y/Z axes.
Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
Adopting Japan NSK special screws angular contact ball bearing group.
Arm-clipping type magazine with rapid tool change.
Full closed protection guard.
Inclined at a large chip removal angle, so that can quickly clean the chips and accelerate the return speed of Cutting fluid
Powerful mechatronics application technology improves the response speed of the transmission chain, eliminates inactivity during the machining process, reduces non cutting time, and improves production efficiency.
Technical parameter :

Model	Unit	TD-600	TD-700
Work table size	mm	700x420	800x420
X-axis travel	mm	600	700
Y-axis travel	mm	400	410
Z-axis travel	mm	300	300
Work table T slot		3*14*125	3*14*125
Worktable Loading capacity	kg	300	300
Distance from spindle nose to table	mm	150-450	150-450
Distance from spindle center to column	mm	445	445
Spindle taper		BT30	BT30
Max.Spindle Speed	rpm	20000	20000
Magazine capacity	PCS	21	21
Max tool diameter	mm	80	80
Max tool length	mm	250	250
Max tool weight	kg	3	3
Tool change time(T-T)	sec	1 6	1 3
Main motor power	kw	5.5	5.5
X/Y/Z-axis servo motor power	kw	1.5/1.5/3.0	1.5/1.5/3.0
Cutting feed rate	mm/min	5-20000	5-20000
X,Y,Z axis rapid moving speed	m/min	48/48/48	48/48/48
Positioning accuracy	mm	±0.005/300	±0.005/300
Repeat positioning accuracy	mm	±0.003/300	±0.003/300
Ball leadscrew	mm	32/32/32	32/32/32
Linear guideway	mm	30/30/35	30/30/35
Machine Weight	kg	3000	3100
Power demand	KVA	20	20
Overall Size	mm	2220x1900x2300	2220x1900x2300

Sandard accessories:
Mitsubishi M80 controller
21 Arm clipping type Magazine from Taiwan
Linear guideway from Taiwan
Ball leadscrew from Taiwan
High speed spindle from Taiwan direct driven
Bearings
Full closed cover
Work lamp
Tri-color warning lamp
Lubricating system
Coolant system
Air gun + Water gun
MPG
Optional accessories:
Fanuc 0i MF plus controller
Syntec 22MA controller
Siemens 828D controller
Chain type chip conveyor
electrical components
Center through spindle CTS 20bar
4th Axis
Company information:
Packaging&Shapping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
