Electronic ID Duty-Free Shop E-Passport NFC Mrz Ocr Passport Scanner (PPR100)

Product Description

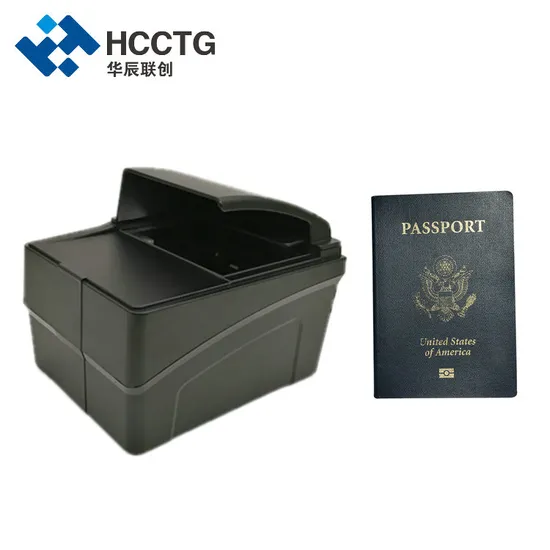

Electronic ID Duty-Free Shop E-Passport NFC Mrz Ocr Passport Reader (PPR100) Detailed Photos
General
PPR-100 is a full-page, mufti-illumination e-Passport reader. Contactless reader. It provides perfect solutions for scanning passport, e-passport, visa and other Electronic Documents & Paper Documents, ISO14443 TYPE A/B/C & NFC smart card, which make it can be applied to variety of industries.
Features
Support the compliance of ICAO9303 standard Part1-4 specification documents and efficient OCR recognition capabilities; High-speed RFID reader, read and write speed <3s (depending on the card); A variety of light sources-visible light, infrared light, ultraviolet light, a variety of light source image acquisition, easy to identify the authenticity of a variety of licenses; Easily control: automatically trigger; Support Firmware Up gr addable, SDK offered.
Product Parameters Specification

Imaging	Scan area: L125mm*W92mm Sensor: 3Megapixels,CMOS, RGB 24bit Color Resolution: 400DPI With the declining platform
Illuminations	IR 860nm Visible 430-680nm UV A 365nm
Indicator	3 status indicator LED(for Power Ready and Error)
Host	Full speed USB 2.0 Power Supply 5V DC DC JK5.5
Size (L * W * H)	204*170*126mm
Weight	<1kg
Environmental	Temperature[°C]: 0 to 40 Humidity [%]: 20-80 (non- condensing)
Approvals	IP54(Dust Proof) WEEE/ROHS
Recommended Computer Configuration	CPU:2 GHz Memory: 2G DRAM Hard Disk: 100G OS: above Windows 7

Version

PPR-100	PPR-100A: Epassport Reader, with the declining platform	USB	OCRprocessing; RFID reading; Visual image; IR image; UV image; Auto-trigger
	PPR-100B: Epassport Reader, with the horizontal platform (Most suit for self-service Kiosk application)		OCRprocessing; Visual image; IR image; UV image; Auto-trigger
PPR-100C	E-passport reader, cheap model	USB	OCRprocessing; Visual image; IR image; UV image; Auto-trigger

Company Profile Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of POS & POS Peripheral Products. We are located in Shenzhen with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.Our factory have obtained ISO9001 certificates in 10 year, production department is over 3,000 SQM. Our products sell well in all cities and provinces around China, and also exported to clients over 100 foreign countries and regions. We also welcome OEM and ODM orders.Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Certifications
Packaging & Shipping
After Sales Service
FAQ FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution since 2008. We can provide OEM / ODM customized service according to our customers' various application and demands.

2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment and so on.

7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.

8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.

9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
