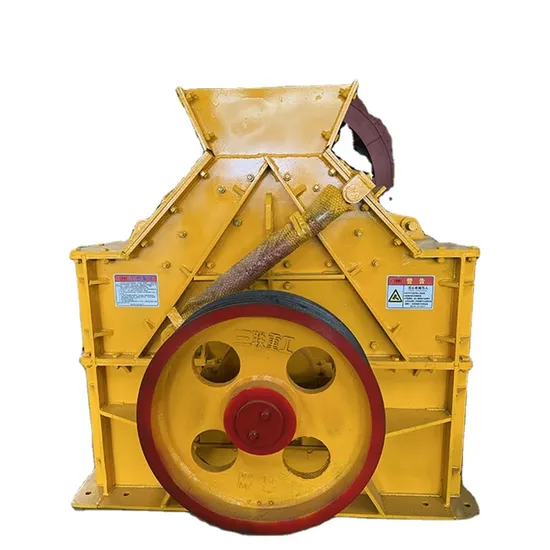

Vertical Hammer Crusher Machine Crusher Stone Machine Hammer Crusher Spare Parts

Product Description

This machine has six major characteristics
1.Big reduction ratio:feed size 450-550mm discharge siae: 0-55mm
Among them,20-40mm accounted for more than 60%.
2.Simplify the process:break the primary and two levels in to one to save equipment investment and reduce maintenance costs.
3.Save electricity: compared with the same kind of power equipment saving 30-50%.
4.Long life: selection of high wear-resistant alloy material, the service life of wearing parts is increased by 2-3 times.
5.High efficiency: the machine has a large capacity of broken positions, which has output quantity and small abrasion.


Main Technical Parameters

Model	Specificatipons mm	Main shaft speed r/min	Material size mm	Discharge size mm	Production capacity t/h	Power kw
SL-1	800*1000	740	400	20*30*40*50	50-80	55
SL-2	1000*1000	720	450	20*30*40*50	60-100	75
SL-3	1250*1000	680	500	20*30*40*50	80-120	90
SL-4	1400*1000	650	550	20*30*40*50	100-150	110
SL-5	1600*1000	620	550	20*30*40*50	200-2600	132

Usage and Application
The Crusher can be used for width used, the mainly used for the medium and fine crushing of hard ores and rocks in metallurgy industry, mine industry, chemical industry, cement industry, construction industry, refractory materials industry and ceramic industry and other sectors.
It is suitable for crushing all kinds of hard and soft ores with less than 300MPa compressive strength, such as pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, iron ore, coal gangue, construction waste, ferrosilicon, basalt, sandstone, ore, glass, cement clinker, etc.
Our Services Pre-Sales Service:
1) Inquiry and consulting support.
2) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
3) View our Factory. Field trips to sell products.
After-Sales Service:
1) After acceptance of the equipment, we will draft the construction program and detailed process, and complete the export process.
2) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
3) Spare parts and wearing parts will be offered with production cost in 10 years.
Certifications
Factory Show
Qingzhou Sanlian Machinery Co., Ltd. is a professional manufacturer and large-scale processing enterprise engaged in scientific research development, engineering design, production installation, and commissioning service.

Main Products

Our main products are of 15 series and over 50 varieties: small medium and large iron sand ships, dry magnetic separation machineries, all kinds of sand-digging ships, small and medium-sized cutter suction dredgers, radio suctions, drilling and self-suction sand pumping ships, building high-speed railways, highway used the washing stone machines and washing sand machines, gold mining ships, sand transportation ships, screen sand machines, gravel election equipment, gravity processing equipment, weathered sand machineries, long-distance transportation equipment, special-shaped mechanical equipment and small loaders.

Export Experience

Our products are sold all over the world,such as Africa, Mali, Benin, Nigeria, Pakistan, Indonesia, Malaysia, Serbia, Ukraine and other countries.



After-Sales Service

We provide transportation, installation commissioning, training operators and spare parts for users. In after-sales service, we have established a perfect customer service system. Each set of equipment and spare parts have maintenance, providing repairing convenience and efficient after-sales service.

Design Adavantage

We design special-shaped products to meet different customers' needs according to terrain environments and actual requirements.

Business Philosophy of Our Factory

Service Purpose,Quality and Trustworthy--- a promise that will be kept.
Cases Show
FAQ Q1: Are you factory or trade company?
A1: Qingzhou Sanlian Machinery Co., Ltd. is a professional manufacturer and large-scale processing enterprise engaged in scientific research development, engineering design, production installation, and commissioning service.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at
Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price. If there are problems you can't handle, we will send our technicians to your place and you are therefore, responsible for all the cost involved
Q5: What about the payment method?
A5:T/T, L/C is available
Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
