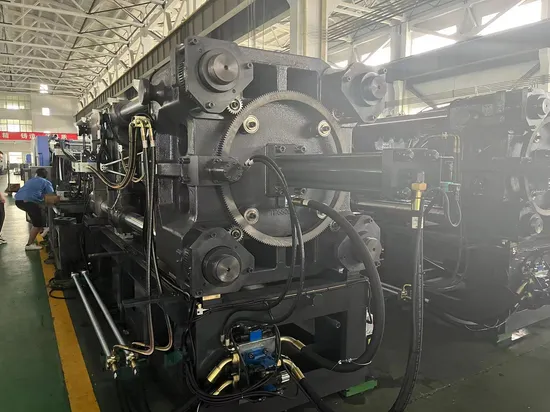

PP Plastic Injection Molding Machine for Bread Crate
| US$25,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
LTY-HD900L
Type
Plastic Product Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
160T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years
Product Description
| SPECIFICATION | LTY-1600 | ||||
| A | B | C | D | ||
| INJECTION UNIT | |||||
| SCREW DIAMETER | mm | 42 | 45 | 50 | |
| SCREW L/D RATIO | L/D | 23.6 | 22 | 19.8 | |
| SHOT VOLUME(THEORETICAL) | cm3 | 305 | 350 | 432 | |
| INJECTION WEIGHT(PS) | g | 277 | 319 | 393 | |
| INJECTION RATE | g/s | 138 | 160 | 196 | |
| INJECTION PRESSURE | MPa | 203 | 177 | 143 | |
| SCREW SPEED | rpm | 180 | |||
| CLAMPING UNIT | |||||
| CLAMP FORCE | KN | 1600 | |||
| OPEN STROKE | mm | 435 | |||
| SPACE BETWEEN TIE BARS(W*H) | mm | 480x480 | |||
| MAX.MOULD HEIGHT | mm | 520 | |||
| MIN.MOULD HEIGHT | mm | 180 | |||
| EJECTOR STROKE | mm | 135 | |||
| EJECTOR FORCE | KN | 50 | |||
| OTHER | |||||
| MAX.PUMP PRESSURE | MPa | 16 | |||
| PUMP MOTOR POWER | kW | 18.5 | |||
| HEATING POWER | kW | 10.35 | |||
| MACHINE DIMENSION(L*W*H) | m | 5.16x1.45x2.12 | |||
| OILTANK CUBAGE | L | 300 | |||
| MACHINE WEIGHT | t | 6.3 | |||
