Pharmaceutical Powder Grinding Impact Mill Hammer Mill Cone Mill

Product Description

Product Description
Herbal Medicine Cone Milling Hammer Pin Mill

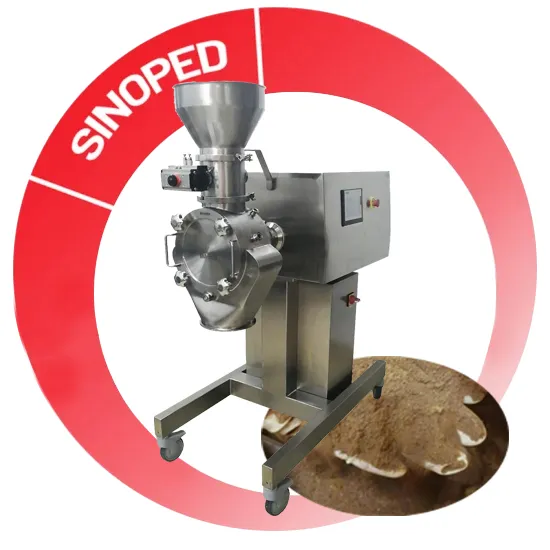

YM-500 hammer mill equipment is the introduction of foreign advanced technology, independently developed, designed and manufactured by the company. Because of its unique and advanced design and manufacture
Excellent performance in mass production and laboratory applications.
Practical clamp connection design makes it easy to disassemble and separate the equipment cavity, making it easier to clean and sterilize;
The effective area of the screen is larger, and the mesh rate is more than 30% higher than that of the traditional screen;
Especially suitable for crushing hard, crystalline and fibrous materials;
Suitable for aseptic production and dust-free production.
All kinds of dry, wet and heat-sensitive materials are applicable.

Working principle:
The crushed material is thrown out radially under the centrifugal force of the high-speed rotating blade, and the particles, the inner wall of the crushing chamber, and the knife are hammered, sheared and collided at a high speed, and the particles that meet the requirements enter the receiving device through the mesh screen , complete crushing.
This machine has been widely used in pharmaceutical, food and chemical industry.
For example : Amoxicillin, Cefminox sodium, Cefuroxime sodium, Cefixime, Cefmenoxime hydrochloride, Metformin hydrochloride, Colesevelen Hydrochloride, Levofloxacin, Carmoxicillin, ketoprofen, Cyromazine, Florfenicol, Clozapine, Sorbitol, Vitamin C, Amino Acid Mixture, White Sugar, Salt, Potassium Chloride

Machine Details

Product Parameters

Model	YM-500
Power (kw)	4.4
Speed (rev/min)	1000-6000
Capacity (kg/h)	50-800
Particle size range (um)	50-300
Machine size (mm)	L1200*W660*H1630
Weight (kg)	150

Detailed Photos
Packaging & Shipping
Standard export wooden case

1.Apply some oil to the equipment to prevent rust from the weather during transportation. 2.Wrap the device with a winding film to prevent water vapor from contacting the device surface and causing rust. 3.Wrap foam paper around the corners of the teabag packing machine to prevent damage caused by bumping during transportation. 4.This machine is packed in export standard plywood boxes to prevent the equipment from bumping during transportation. Technical Paramete
