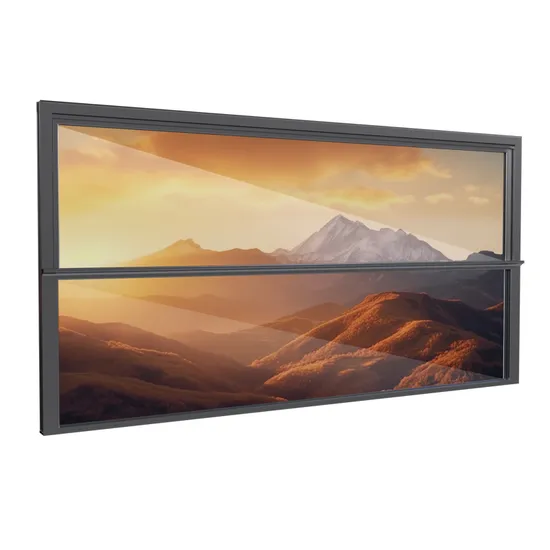

Multi-Layer Laminated Glass Sensor Vertical Lifting Aluminum Alloy Window Automatic Balcony Floor-to-Ceiling Window

Product Description

Product Recommendation

Product Parameters

Project Solution Capability	total solution for projects
Feature	Waterpoof/Anticorrosive/Burglarproof
Function	Soundproof
Brand Name	sunray
Product name	Lifting window
Material	Aluminum Alloy
Color	12 Color For Option
Size	Customized Size
Glass	Double Tempered Double Glazed Lowe
Application	Residential/Commercial
Certificates	ISO9001/Patent Design Certificate
Advantage	Daylighting / Ventilation / Soundproof / Impact Resistance
Structure	Aluminum Alloy Structure Frame
MOQ	1 SET
Profile thickness	2.0mm
Profile Series	168 Series
Customizable size range	L≤4.5m,W≤2.4m
Installable glass thickness	≤50mm
Motor service life	3 years
Profile service life	10 years

Operating Principle:
The spring tension is precisely matched to the window weight to ensure accurate operation of the window sash. The four-corner positioning of the window sash is combined with a balancing system. Driven by the motor, the window sash rises and falls smoothly, and the window sash automatically hovers when the power is off.
Electronic control system:
1. 24V safe voltage, low power operation 2. Support voice, mobile APP, rain sensor control, stop when encountering obstacles 3. Stable transmission, synchronous lifting of gear and rack, bilateral level calibration, and backup power supply guarantee.
Waterproof principle:
High-performance sealing strips are used to prevent rainwater from seeping in, keeping your home dry and comfortable.
Equipped with mesh:
304 stainless steel high-transparency diamond mesh, with a wider field of view, extremely strong, small aperture, can prevent mosquitoes and theft at the same time.
Applicable Scenarios
Feature 1. When opened, it is a guardrail, and when closed, it is a window, which provides safety protection, a wide field of vision, and ventilation.2. Infrared anti-pinch function and child lock function to prevent children from opening the window without permission to play and play3. Forgot to close the window when it rains when you go out? Don't worry, the solar rain sensor will automatically close the window when it rains, for your family Protect and protect.4. Integrated intelligent touch control, one-button lifting and lowering by remote control, high-end intelligence, beautiful and elegant, easy to operate good5. Intelligent control, can be connected to smart home system, voice control, mobile phone remote control, rain sensor, etc.
FAQ
1.Q: what's your MOQ ?
A:1 Set MOQ (please contact us for details)
2.Q:How long is the warranty period for the motor?
A:Our motors are covered by a reassuring five-year warranty, providing peace of mind and reliability.
3.Q: What's your payment term?
A: A flexible payment term of 50% deposit and 50% balance before cargo loading offers convenience and security.
4.Q: Can you provide samples?
A: Yes, we offer surface color samples available within just 3 days, and OEM samples roughly within 15 days.
5.Q:How long does the general production time take?
A: Regular order processing takes approximately 15 to 20 days, depending on the specific order, ensuring timely delivery.
6.Q:What are the preferential policies if I want to be an agent?
A: We offer agents competitive discounts along with enhanced after-sales service to ensure a rewarding partnership.
