Basic Info.
Plastic Type
Thermoplastic
Certification
CE, ISO9001:2008
Screw Speed (Rpm)
210 - 211 Rpm
Distance Between Tie Bars
880X880mm
Injection Weight (G)
530 G
Plasticizing Capacity(G/S)
45
Screw Diameter (mm)
52 mm
Injection Rate (G/S)
220 G/S
Mold Height(mm)
620 - 750 mm
Product Description
Details Images

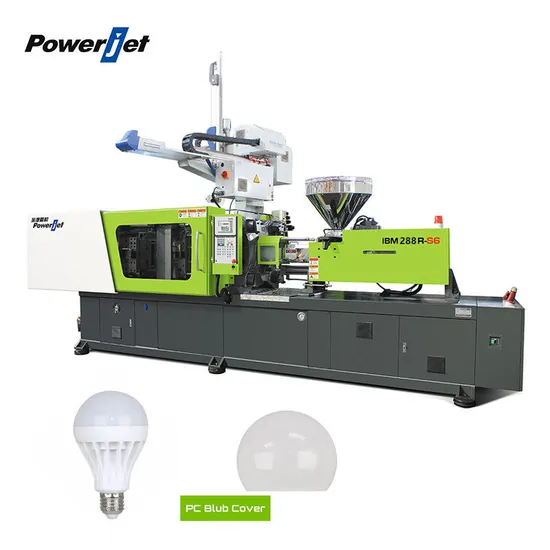

IBM288R-S6 Rotary Injection Blow Molding Machine
IBM-R Series Rotary Injection Blow Molding Machine with a rotary mold system for good surface finishing products like: LED bulb PC
covercosmetics bottle etc.
Clamping Force - 2000~3300(KN)
Driving System - Hydraulic
Motor Type - Servo
Applications - LED Bulb, Cosmetics Packaging & Bottle
FEATURES:
1:Automatic Product Line
Equipped with the robot for automatic production line to improve efficiency.
2:Rotary Accuracy
The rotary part is controlled by servo motor, which ensures the rotary accuracy.
3:Modular Mold Design
Modular design mold structure to reduce the production cost, if the product is changed, just need to change the relative mold parts.
4:Good Appearance Finish
The appearance quality is perfect without a parting line, suitable for the industry which is strict for the product appearance.
Products Description
DESCRIPTION
|
| UNIT
| IBM288R-S6
|
LAMPING UNIT
| Clamping force
| KN
| 2880
|
| Opening stroke
| mm
| 550
|
| Max.datlight
| mm
| 1300
|
| Platen size
| mm
| 850*850
|
| Space between bars
| mm
| 610*610
|
| Max.mold height
| mm
| 750
|
| Min.mold height
| mm
| 620
|
| Max. Rotary Center Distance
| mm
| 650
|
| Min. Rotary Center Distance
| KN
| 310
|
INJECTION UNIT
| Screw diameter
| mm
| 52
|
| Screw L/D Ratio
| L/D
| 21
|
| Injection Pressure
| MPa
| 226
|
| Shot volume
| cm3
| 594
|
| Shot weight (ps)
| g
| 530
|
| Injection rate
| g/s
| 220
|
| Screw stroke
| mm
| 280
|
| Screw speed
| rpm
| 210
|
POWER UNIT
| Hydraulic system Pressure
| MPa
| 17.5
|
| Pump motor power
| KW
| 30
|
| Heater power
| KW
| 13.8
|
GENERAL
| Oil tank capacity
| L
| 425
|
| Machine weight
| T
| 9.3
|
| Machine dimensions (L*W*H)
| m
| 6.4*1.7*2.1
|
