K30 Plate Load Tester Soil Bearing Capacity Testing Plate Bearing Test Set

Product Description

Product Description

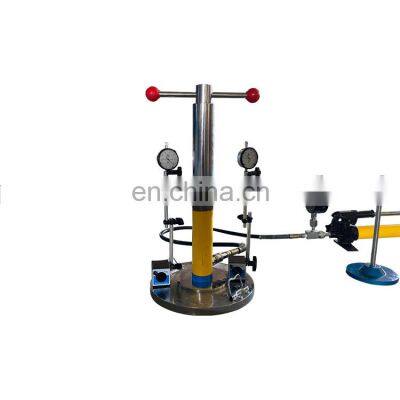

Product Usage and Features K30 Plate load testerAPPLICATION:The Plate Load Tester is a field equipment for determining the ultimate bearing capacity of soil and the likely settlement under a given load. The Plate Load Tester applies a load on a steel plate placed at the foundation level and recording the settlements corresponding to each load increment. It’s kind of common road testing equipment. The test of the foundation coefficient of fine-grained soil and soil-filled compacted subgrade and base layer can also be used to calculate the deformation modulus of uniform foundation soil. BASIC STRUCTURE: 1. Loading system: It is composed of loading plate, jack, high-pressure tubing of manual pump, etc., and the positioning line for jack is engraved on the loading plate. 2. Bridge measurement: it is composed of a support, a beam, a dial indicator and a bracket. The beam can be raised and lowered along the two support columns to adjust the height.ParametersProductK30 Plate load testerStraight through load plate300mmJack stroke120mmSpan of side bridge3000mmPressure test range25MPa (level 0.4)Displacement test range0-10mmApplicable temperature5°-45°CDetailed ImagesApplicationContact USCangzhou Lovely Technology Co., Ltd.It is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 40 countries and regions, which win favorable comments from customers worldwide.Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipments, advanced management and production experience, developing the high-quality testing instruments.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?1. Get our in-time reply via email or telephone or instant messenge. Our product specialist will guide you find the suitable product according to your requirement;2. Get best product with excellent quality and competitive price;3. One year guarantee for whole machine and in time technical support by video or email. Always enjoy our considerable & full-side after-sales service;4. Feeling very convenient since we can help you source and ship products from different factories via one shipment, which is significant to save your time and cost;5. Easily make the payment via West Union, Paypal, Credit Card for small value order;
