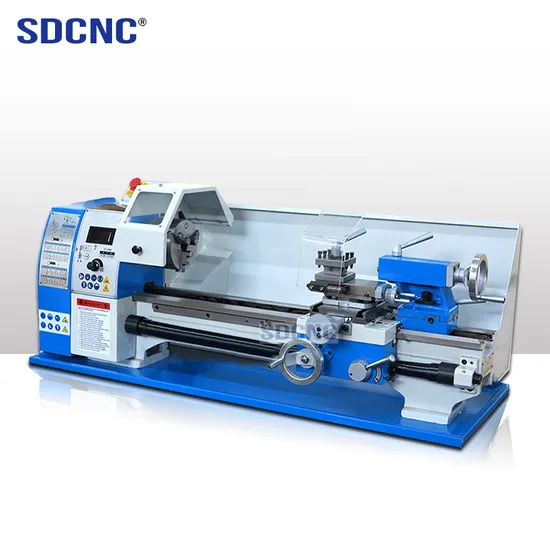

Sdcnc Jy250V Small Machining Lathe High Precision Mini Lathe Multi Functional Home Machine Tool
| US$1,100.00-1,550.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JY250V
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Heavy Duty Lathe Machine
CNC or Not
Nomal
Core Components
Bearing, Gear, Motor
Name
Small Lathe
Transport Package
Wood Packing
Specification
1130 * 550 * 405
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
113.00cm * 55.00cm * 40.00cm
Package Gross Weight
120.000kg
Product Description
CE High precision mini /small manual metal lathe JY250G
6 speed gear change (AC asynchronous motor) with double screw lead
Product Parameters
| Specifications | JY250VF |
| Max. swing over bed | 250mm |
| Distance between centers | 550mm (optional 750mm) |
| Max. swing over cross slide | 150mm |
| Spindle bore | 26mm |
| Spindle taper | MT4 |
| Range of spindle speed | 50-2000rpm |
| Step of spindle speed | variable |
| Range of metric threads | 18kinds (0.2-3.5rpm) |
| Range of imperial threads | 18kinds (8-56TPI) |
| Top slide travel | 70mm |
| Cross slide travel | 115mm |
| Tailstock quill travel | 70mm |
| Taper in tailstock spindle | MT2 |
| Motor power | 750W |
| Packing size | 1320*570*610mm |
| N.W/G.W | 120/140kg |
COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.
