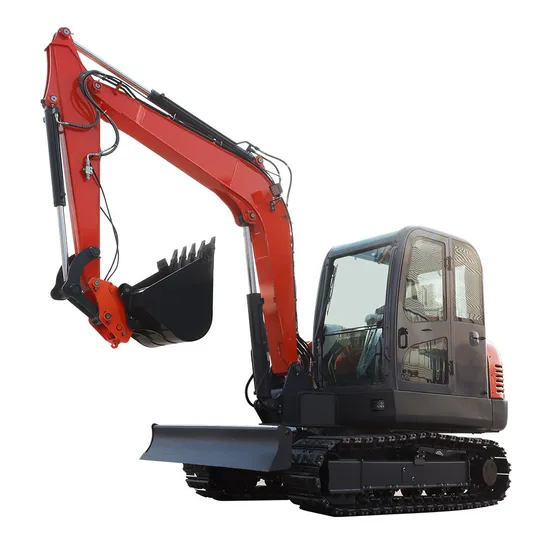

Crawler Mini Excavator 6ton 8 Ton Swing Arm Small Backhoe Hydraulic Digger Mini Excavatorno Reviews Yet
Basic Info.
Model NO.
HT-60
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Colour
Customer Custom
Price
Factory Direct Sales
After Sale
Factory After-Sales Speed Is Fast
Factory After-Sales Speed Is Fast
Custom Design
Transport Package
Wooden Box
Specification
100
Trademark
no
HS Code
8412210000
Production Capacity
50000
Product Description
Product descriptions from the supplier Technical parameter| HT60 performance parameters | |
| weight (T) | 5.85 |
| Bucket capacity (m3) | 0.22 |
| engine type | Japan Engine4TNV98 |
| Power (kw / r/min) | 44/2200 |
| Fuel tank volume (L) | 100 |
| Walking speed (km/h) | 4.2/2.2 |
| Swing speed (r/min) | 9.5 |
| climbing capacity (%) | 70 |
| Bucket excavation force (KN) | 38.5 |
| Bucod length (mm) | 1630 |
| Boom Length (mm) | 3000 |
| Ground specific pressure (KPa) | 33.5 |
| Hydraulic oil tank volume (L) | 80 |
| HT60 machine size | |
| A-cabinet minister (mm) | 5960 |
| B-total width (mm) | 1960 |
| C-Total height (boom top)) (mm) | 1995 |
| D-Total height (driver top)) (mm) | 2690 |
| E-Ground clearance (mm) | 700 |
| F-Minimum ground clearance) (mm) | 360 |
| G-tail rotation radius (mm) | 1700 |
| H-Track ground length (mm) | 2000 |
| J-Track length (mm) | 2560 |
| K-gauge (mm) | 1560 |
| L-Track width (mm) | 1960 |
| M-Crawler plate width (mm) | 400 |
| N-table width (mm) | 1906 |
| HT60 operation | |
| O-maximum excavation height (mm) | 5750 |
| P-maximum unloading height (mm) | 3980 |
| Q-Maximum excavation depth (mm) | 3860 |
| R-Maximum vertical wall excavation depth (mm) | 3040 |
| T-Maximum excavation distance (mm) | 6170 |
| U-Maximum excavation distance at the ground plane (mm) | 6045 |
| V-Minimum swing radius (mm) | 2380 |
| W-maximum height at minimum rotary radius (mm) | 4395 |
| X-Distance from swing center to rear end (mm) | 1700 |
| Z-counterweight height (mm) | 1685 (hood) |
| A1-Ground length (during transport) (mm) | 3370 |
SpecificationPacking & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Our company mainly produces and sells mini excavators, road rollers, loaders, lawn mower, sprayers and other products. Our company have invention patent, software copyright, seven trademarks in China and Two trademarks in abroad. Hightop Group got ISO9001 international quality system certification, European Union CE certification, SGS certification, Germany TUV and French BV certification. We also got AAA certification Units that value quality and keep promises at 2020.
FAQ
1,What's your MOQ?
Minimum order is 1 pc only, dealership is warmest welcome.
2,What's the qualify assurance we provided and how do we control quality?
1). Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2).100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are
inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the machines and parts?
1),We transport the machines in nude or Polish with wax before shipping.
