Double Shafts Woven Bags Crushing Machine

Product Description

Double Shafts Woven Bags Crushing Machine
The crushing machine is applicable for shredding the waste plastic bags, bottles, woven Bags, waste
Cloth. These machines ensure safe and healthy environment. The recycling machine is specially designed for waste management. There are different specifications and capacities in which those materials are various sizes.
Double shafts crushing machine is through the cut, tear and squeezing, reaching to decrease the size of raw material.
The structure features:
Machine body, motor, reduction gears, six arris spindle, Moving Blade and bottom fix blade, frame, bearing housing and other major structures.

The working principle:
Spindle bearings on both sides of main shaft, through motor and reduction gear, rotary main shaft drives the spiral arrangement blades, make the blades on two shafts are meshing together, to tear, raw materials, and repeating this move to finished shredding. electronic control parts has a Reverse automatic control devices, when overfeeding or raw material is too big, Machine will inverted running and stop, avoid damage of blades or motor. To improve the service life and cutting ability, the main shaft through conditioning processing, and use high quality imported blades.

Technical parameters:

Model	unit	FM-30-1000
Power	kw	55+55
Pieces of blade	pcs	30
Material	/	6Crw2si
Thickness	mm	30
Main shaft speed	r/min	15
Capacity	t/h	12
Weight	kgs	3000

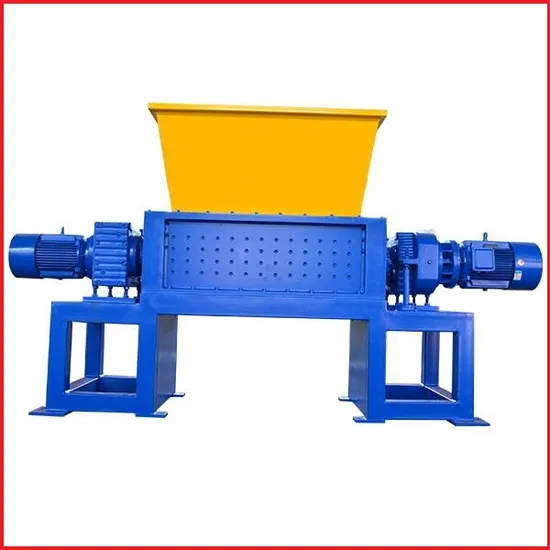

Photo:
