Products Description

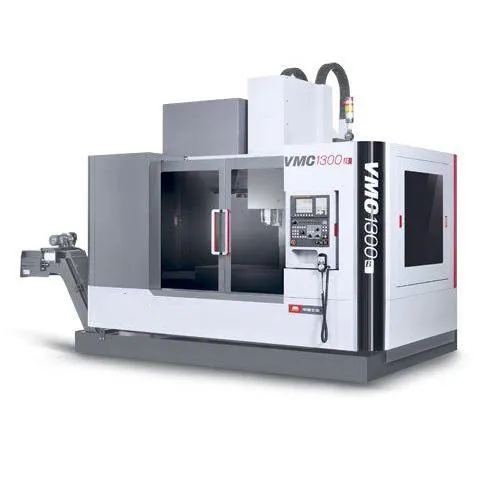

CNC Vertical Machine Center
The bed, table, saddle, column, headstock and other main parts are made of high-strength inoculated cast iron material. The molding is resin sand process, and the stress is eliminated by twice aging treatment. These large parts are optimized by 3D Design Software Solidworks, which improves the rigidity and stability of the large parts and the whole machine, and effectively suppresses the deformation and vibration of the machine tool caused by cutting force.


Standard devices
FANUC 0i MF(5) CNC control system FANUC servo motors for X/YIZ axis (3kWI 3kW I 3kW) FANUC servo spindle motor (11/15 kW) Taiwan BT40/8000rpm spindle Taiwan BT40/24T ATC NSK spindle and ball screw bearings for X/YIZ axis Taiwan HIWIN/PMI Linear guide for X/YIZ axis Taiwan HIWIN/PMI ball screw for X/Y/Z axis Auto chip conveyor, air conditioner
1. It has strong adaptability and good flexibility in parts processing, and can process parts with complex contour shape or difficult to control size, such as mold parts, shell parts, etc; 2. It can process parts that can not be processed by ordinary machine tools or are difficult to process, such as complex curve parts described by mathematical models and three-dimensional curved surface parts; 3. It can process the parts that need to be processed by multiple processes after one clamping and positioning;
Roller type Linear guide ways of X,Y,Z axis Number:2/2/2 Width35/45/45mm XYZ travel: 800x510x51 0mm Rapid speed: 48/48/30m/min
Specifcation

Machine Type	VMC1060
Working table's size	1300X600
Working table's maximum bearing capability	1000
T-nuten	5`18
x axle travel	1000
y axle travel	600
z axle travel	650
Working table to spindle's face	130-780
The distance from Spindle's center to vertical guide rail	655
Spindle's rotary speed	8000
Spindle's specification	BT40-150
Spindle Motor	7.5/11
Fast-moving speed	18
Feed speed	5
Feed motor	X.Y.Z;3
Tool shank model	BT40
Blind rivet type	MSA P40T-1
ATC type (optional)	20
Appearance size	3210X2605X2400
Weight	7
Pressed air	0.6
Air. consumption	500
Elecrnc Power requrent	20
