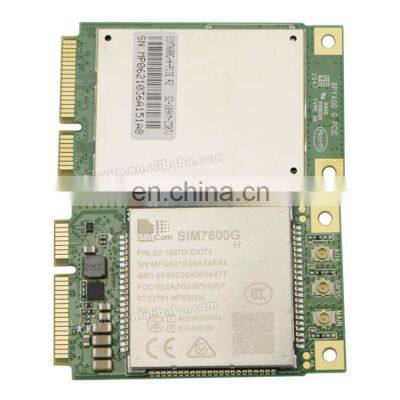

SIM7600G-H-PCIE Multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM Module, SIM7600G-H (LCC) with PCIE adapter board

Product Description

Product Description
DescriptionSIMCOM SIM7600G-H-PCIEGeneral Features•Mini PCIE package•Control Via AT Commands•Supply voltage range: 3.0V~ 3.6V, 3.3V Typical•Operation temperature: -40℃ to +85℃•Dimension: 50.8*31*5.35mm•Weight: 12.6g•Bandwidth: 1.4/3/5/10/15/20MHz•3GPP E-UTRA Release 11 Date•LTE CAT4- Uplink up to 50Mbps- Downlink up to 150Mbps•HSPA+- Uplink up to 5.76 Mbps- Downlink up to 42 Mbps•UMTS- Uplink/Downlink up to 384Kbps•EDGE- Uplink/Downlink up to 236.8Kbps•GPRS- Uplink/Downlink up to 85.6KbpsOther Features•USB Driver for Microsoft Windows2000/XP/Vista/Win7/Win8/Win10•USB Driver for Linux /Android•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0•MBIM to Win8•Firmware update via USB•TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/SMTP/SMTPS/DNS•SSL3.0/TLS1.0/TLS1.2•DTMF (Sending and Receiving)•Audio Playing•USB Audio and VoLTE•FOTA Interfaces•USB2.0 with High speed up to 480Mbps•UART•GPIO•Antenna: Support Primary/Rx-diversity/GNSS activeantenna•(U)SIM card (1.8V/3.0V)•Digital Audio through PCMApproval(plan)•FCC/IC•CE/ACMA FrequencyLTE-TDDB34*/B38/B39/B40/B41LTE-FDDB1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66*UMTS/HSPA+B1/B2/B4/B5/B6/B8/B19GSM/GPRS/EDGE850/900/1800/1900MHzSIM7600X-H-PCIE: ProductSIM7600A-HSIM7600V-HSIM7600SA-HSIM7600JC-HSIM7600E-HSIM7600NA-HSIM7600G-HForm FactorMini PCIEMini PCIEMini PCIEMini PCIEMini PCIEMini PCIEMini PCIEDimensions(mm)50.8*31*5.3550.8*31*5.3550.8*31*5.3550.8*31*5.3550.8*31*5.3550.8*31*5.3550.8*31*5.35Frequency BandsLTE-FDDB2/B4/B12B2/B4/B5/B13B1/B2/B3/B4/B5/B7/B8/B20/B28/B66B1/B3/B8/B18/B19/B26B1/B3/B5/B7/B8/B20B2/B4/B5/B12/B13/B14/B25/ B26/B66/B71B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66LTE-TDDB40B38/B40/B41B41B34/B38/B39/B40/B41WCDMAB2/B5B1/B2/B5/B81/B5/B8B1/B2/B4/B5/B6/B8/B19GSM850/900/1800/1900MHz900/1800MHz850/900/1800/1900MHzGNSSoooooooTemperature-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃Electrical FeaturesSupply Voltage(V)3.0~ 3.63.0~ 3.63.0~ 3.63.0~ 3.63.0~ 3.63.0~ 3.63.0~ 3.6Power Consumption(mA)LTE2.32.32.32.32.32.32.3WCDMA,DRX=93.33.33.33.3GSM,BS_PA_MFRMS=22.82.82.8Data TransferLTE(Mbps)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)HSPA+(Mbps)42(DL)/5.76(UL)42(DL)/5.76(UL)42(DL)/5.76(UL)42(DL)/5.76(UL)WCDMA(Kbps)384(DL)/384(UL)384(DL)/384(UL)384(DL)/384(UL)384(DL)/384(UL)GPRS/EDGE(Kbps)236.8(DL)/236.8(UL)236.8(DL)/236.8(UL)236.8(DL)/236.8(UL)Software FeaturesProtocolTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTLS●●●●●●●File System●●●●●●●Audio Record/PlayoooooooTTSoooooooDTMFoooooooLBS●●●●●●●FOTA●●●●●●●Jamming Detection●●●●●●●Android RILAndroid 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0USB DriverMicrosoft Windows 7/8/10Linux/AndroidMicrosoft Windows 7/8/10Linux/AndroidMicrosoft Windows 7/8/10Linux/AndroidMicrosoft Windows 7/8/10Linux/AndroidMicrosoft Windows 7/8/10Linux/AndroidMicrosoft Windows 7/8/10Linux/AndroidMicrosoft Windows 7/8/10Linux/AndroidWWAN (RNDIS)●●●●●●●ECM●●●●●●●MBIMWin8/Win10Win8/Win10Win8/Win10Win8/Win10Win8/Win10Win8/Win10Win8/Win10NDISLinux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Open LinuxoooooooFirmware UpgradeUSB/FOTAUSB/FOTAUSB/FOTAUSB/FOTAUSB/FOTAUSB/FOTAUSB/FOTAInterfacesSIM Card1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0VUART●●●●●●●USB●●●●●●●PCMoooooooAnalog AudiooooooooEmbedded SIM card socketoooooooDiversity Receiver●●●●●●●CertificationRegulatoryFCC/PTCRB/IC/RoHS/ REACHFCC/GCF/RoHS/REACHCE-RED/ACMA/FCC/NCC/ RoHS/REACH/AnatelTelec/JATE/RoHS/REACHCE-RED/RoHS/REACH/ IMDA/GCFFCC*/IC*/PTCRB*/GCF*/ RoHS*/REACH*CE-RED/FCC/IC/RCM/RoHS*/ REACH*CarrierAT&TVerizonDocomo/SoftbankDeutsche Telekom/VodafoneAT&T*/Verizon*/Sprint*/T-mobile*●: support o: optional * : on goingWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
