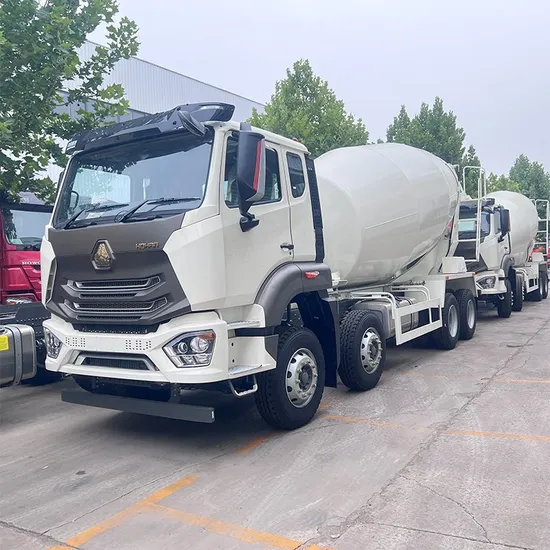

Low Price Sinotruk Hohan 9m3 Self Loading Dimensions Volumetric Concrete Mixer Truck for Sale

Product Description

Model		8X4
Engine	model	D10.38-40/380HP/Euro4
		WD615.47/371/Euro2
	Displacement	9.726L
Cabin		H16 single sleeper, equip with air-condition, safety belt, electric lifting cabin, wind deflector.
Clutch		Φ430 pull-type diaphragm clutch
Transmission		HW13710/ HW19710/HW19712
		12/10 front and 2 reverse, manual gearbox
		SINOTRUK HW series Transmission, main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.
Drive Axle		HC16
		SINOTRUK brand, 9ton,
		Central reduction and hub reduction, drum brake
Speed ratio		4.42,4.8, 5.73
Front Axle		HF9
		SINOTRUK brand, 9ton,
		drum brake or disc brake
Frame (mm)		300X80x(8+8)/300X80x(8+8+8)
Chassis suspension		Multiple-leaf spring in front and rear
Steering		Z F power steering with hydraulic system
Tyre		11.00R20
Fuel tank		300L
Breaking system		service brake: dual-circuit air pressure brake;
		parking brake: spring storage energy without air;
		auxiliary brake: Engine exhaust braking.
Electronic system		voltage:24V;generator:1540W;starter:24V,7.5kw;battery:12V/165Ah,2pieces
Mixer	volume	12~14cbm
	Thickness	6mm
	Other	ETON pump,
		ETON motor,
		Italy Bonfiglioli speed reducer. Speed of mixing barrel:0-16r/min
		Mixing obliquity:11°
		Capacity of water tank:380L
		Residual rate of discharge:<0.5%
		Max. dimension of hopper:980mm

The mixer tank we produced, with automatic centering of the four roller mechanism, not only overcame the generated the noise and vibration of tank when the high-speed rotation, and greatly improve the stability, security and reliability of the vehicle. Mixer blades manufactured by a large three-dimensional stamping molding, within the tank welding into two complex curved spiral, realized three-dimensional mixing, ensure uniform concrete mixing, no segregation, fast front-rear feeding and discharging speed, the residual amount of concrete is almost zero.
The factory and the company are open, and we have received 1,000+ customers frommore than 100 countries around the world. Welcome customers to visit our companyand production factory.
Our trucks are popular in Africa,South Africa,The Middle East,South America,Southeast Asia.We have enough experience to solve any problems you may encounter.We have a professional after-sales team, which will solve your questions in time.
Company brief introduction: We are established in 2010. The company is located in Jinan City, Shandong Province, where Sinotruk is located.Sincere to the customer and in good faith of quality is Deruna Heavy Truck Parts forever followed motto. It's the basement to be a human and do business. We take all responsibility for our products and service sincerely. Main product: Our company specializing in the manufacturing and wholesale of China National Heavy Duty Truck, Shaanxi Heavy Duty Truck, Beiben truck, Foton truck and its related accessories. We mainly engage in various accessories products such as truck parts, cylinder blocks, crankshafts, diesel engines.
1.Power parts, including engines and peripheral parts [such as starters, generators, superchargers, various filter elements, etc.
2. Driving Part [also called transmission part], including clutch, gearbox, transmission shaft, axle, etc.;
3. Suspension part, including front and rear steel plates and fasteners, balance shaft, thrust rod, etc.
4. Steering part, including steering gear and Horizontal pull rods, etc.
5. Electrical appliances and valve parts, including various types of electrical switches, wiring harnesses, bulbs, and various braking components (valves).
6. Control and cargo parts, namely cab and cargo compartment.
7. Frame [that is, the beam] and so on. Overseas market at present: Our sales have averaged over 10 years of experience in exporting, and are proficient in all processes of business operation which can efficiently fulfill customer needs. We currently export to 37 countries, and the client partners from Russia, New Zealand, Fiji, Papua New Guinea, Malaysia, Zambia, South Sudan, United Arab Emirates, Zimbabwe, Colombia and so on. We can also help you to supply registration documents of the importing in different countries. Welcome new and regular customers to contact us to establish future business relationships and achieve common success.
We will We find the best transportation solution for you to reduce the transportation cost.
(1)Wax: Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package: Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping: Reliable logistic service from famous freight supplier makes transport process safely and promptly
Q: What if I can not provide part number for reference? A: If no part number, we can judge and quote the requested parts by engine name-plate or photos;
It would be great if you could provide us with the chassis number(VIN) so that we can provide a more comprehensive analysis and accurate quote feedback based on your truck model.
Q: Can we buy 1 pcs of truck parts for quality testing? A: Yes, we are glad to send 1pcs item for quality testing if we have the truck parts of you need in stock.
Q: Do you test all your goods before delivery? A: Yes, we have 100% test before delivery.
Q: How do you make our business long-term and good relationship? A: We keep good quality and competitive price to ensure our customers benefit;
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q: How long is the production time of the goods? A: We have sufficient stock of regular specifications for immediate delivery; Non-conventional specifications generally require stocking for about 7-10 days; Large quantities order need to be in stock for about 15-20 days.
Q: What is the packing? A: Neutral packing of paper carton or wooden case. Or we customize the packaging according to your requirements 3
