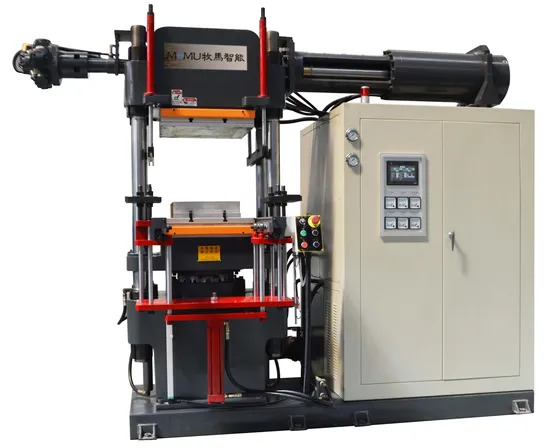

Silicon Rubber Injection Molding Machine, LSR Injection Machine 120t Interlocking Gym Mat Making Machine

Product Description

rubber injectin molding machine parameter
Features Introduction:
1, can be installed in different types of mold, especially suitable for molding complex structures and diverse products;
2, countertops big, big hot plate area, can ensure better mold heated hot plate temperature uniformity;
3, hot plate and mold with the launch of the machine in front, make molds and hot plate after you take the products without
temperature, mold temperature again reduce the time;
4, the outflow channel design, runner only in the uppermost surface of the mold design, the machine comes with half of the mold
flow channel for customers to save the cost of a layer of mold;
5, the hydraulic motor torque, can guarantee fast high hardness rubber feed, reasonable screw design, suitable for different
rubber;
6, injection speed, injection pressure is high, can reach 1800kg / f-3000kg / f, the finished product is high quality, flash and
even less, for a variety of sophisticated finished products;
7, rapid clamping and rapid tooling, improve production efficiency;
8, the machine fully functional, optional hanging down power module, the former top agency, under shoot, thimble, left and right
side of the mold, saving variable pump, hydraulic servo system, electric eye safety, international brands and touchscreen
controllers.
Application:
Multilateral, polygonal and other complex products, especially sports supplies, automotive supplies, electronic
supplies, electrical insulators and other industries.

Type	TRH-210	TRH-330	TRH-440	TRH-550
Clamping force(Ton)	210	330	440	550
Volume mjechon(cc)	2000	3000	5000	8000
Heating plate size(mm)	550*550	650*650	750*750	800*800

the machine have different open mold way : as 2RT/3RT/4RT OR using Upper and lower lifter part , suiting for different kinds of mold. Casting using the Nodular Cast iron , longer using life Electrical element using good quality parts , Testing Four column force must be the same , then prootect the machine using life Exhibition Asia Rubber Expo Exhibition Ruuber exhibtion Exhibition Chinaplas PACKAGE LOADING SHIPPING
