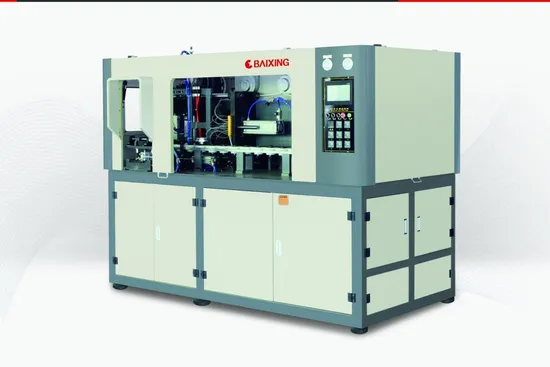

Honey Jar Nut Jar Pet Jar Machine Machine (BX-2500)

Product Description

BX-2500 automatic bottle blower is applicable for blowing the carbonic acid beverage bottle, mineral spring water bottle, farm chemical bottle, oil bottle, medical bottle. Modular unit design, minimal space, and flexible parts
Linear structure, using the special material to make the side plate, and the wheel without nook, working smoothly
Apply stainless steel ring-shaped anti-pinch device and aluminum cooling device to protect the neck of the bottle from distortion while heating, thus improve leak-proofness between bottles and caps, and prolong the guarantee period.
Each heat-balancing device with independent infrared lamps guarantee the uniformity of the color of the bottle and enhance yield rate of the products.
Apply large flow blowing device with the features of being able to pre-blow and adjust.
Apply pre-blowing and blowing device with photoelectric control, bringing no influence to stretching time by the fluctuation of air pressure, thus realizing same thinkness for the whole bottle.

Item		unit	BX-2500
Production specification	Max. container volume	L	2.5
	Max. neck diameter	mm	120
	Max. container diameter	mm	140
	Max. container height	mm	320
	Number of cavity	pcs	1
	Theoretical output	bph	800-1000
Electrical	Max. heating power	kw	24
	Installation power	kw	24.5
Compressed air	Operating pressure	Mpa	7
	Low pressure consuming	L/min	1000-1200
	Blowing pressure	Mpa	≤4.0
	High pressure consuming	L/min	1200-1600
Chiller water	Operating pressure	Mpa	5-6
	Temperature	c	10
	Flow rater	L/min	20
Machine dimension	Machine dimension	m	2.65x1.85x1.8
	Machine weight	kg	1500
