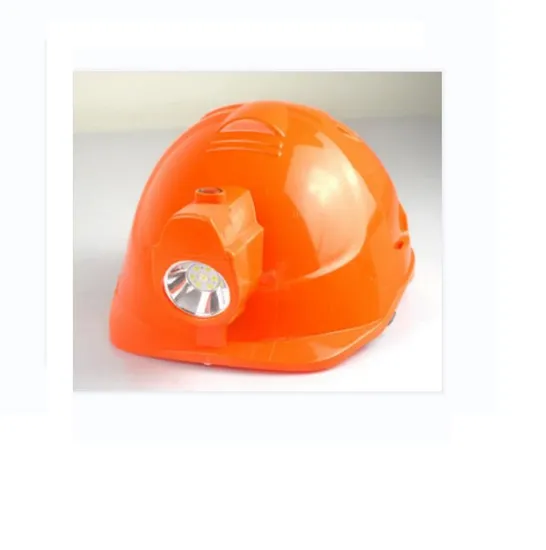

GM900 Kl2.8L Msafety Cap Lamp Headlamp Helmet

Product Description

GM900 safety cap lamp:
High Power GM900 safety cap lamp is special Led lamp with OEM service,This kind
of safety cap lamp can used in underground mining and industrial field and others,The
Led light with long time illustration an high Power lighting.
Name: GM900 Intelligent miner's lamp
Model:GM900
Battery:2.4Ah (rechargeable)(lead-acid battery)
Continuous illumination hours:≥11h (1 pcs of KL2LM LED)
Description: Length of illumination: 80m
Function:Miner's hat match with head light,explosion
protection,lightweight light,intelligent protection,durable
bulb,rechargeable
KL2.8LM cap lamp
KL2.8LM cap lamp is a new type of environmental-friendly lamp, which is adopted the most advanced 1w LED made by Lighting Company and lithium batteries. This kind of cap lamp can be applied in flammable and explosive environment such as coal mines, chemical industry, oil and road transportation, also can be applied in other mobile lighting places. KL2.8LM cap lamp got flameproof certificate ratified by National Coal Mining Machinery Quality Supervision and Testing Center.
KL2.8LM cap lamps are designed based on GB7857-2003(General requirements for safety of miner's lamp)and MT927-2004(KL miner's lamp), which have characteristics of small size, light weight, long service life, free of maintenance, environmental protection.
1. push the switch to the main light source position if necessary, the main Main illuminant will light.
2. cap lamps could work continuously or intermittently,
push switch to adjust the light source when in the use of it.
3. The rated working current of cap lamps' main light source is 0.15A, which can be illuminated for more than 18 hours; the rated working current of secondary light source is 0.1A, which can be illuminated for more than 28 hours when only use of it. The secondary light source can be available when main light source is failed or overworked to ensure the lamps can long-life work.
4. This product has discharging protection function; when
the battery is discharged to cut-off voltage of 2.9V, protection device will start automatically and turn off the discharge loop, the miner's lamp is off and should recharge the battery before use.
5. push the switch to secondary light source position if main
light source is failed or secondary light source is needed
6. The range of CT is from 3000k to 8000k. It could be chosen according to your requirement within the allowable range

Technical Data for KL2.8LM
No.	Item			Value	Unit	Note
1	Rated voltage			3.7	V
2	Rated Capacity			2.8	Ah
3	Lighting time		Principal	>14	hr
			Auxiliary	>28
4	illumination		Start of lighting	>3000	Lx	1m away from the lamp
			lighting for 11hours	>1100
5	LED	luminous flux(Main illuminant)		80	Lm
		Current	Main illuminant	0.19	A
			Sub illuminant	0.1
		Voltage		3.6	V
6	BATERY	Capacity		2.8	AH
		Amperage of charge		600	Ma	Intelligent charger
		Battery Life		500	Cycle time
		Battery storage life		2	year

FOB price:16 dollars(contain the charger)
Weight: 750g/unit
Package size : 23.5*15*30 cm
