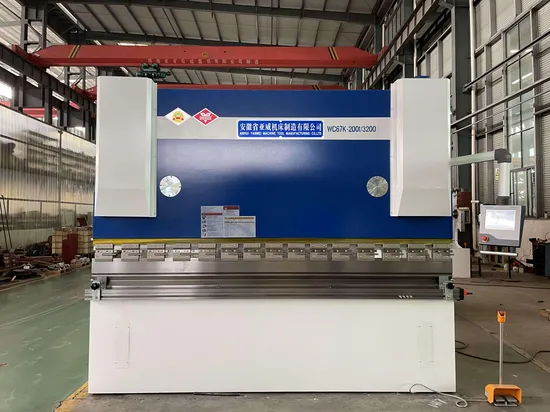

Ahyw CNC Press Brake 200ton/3200mm 4+1-Axis with Estun E300p Controller

Product Description

Products Description AHYW YWT SERIES CNC BENDING MACHINE Press brake, also known as a brake press, is a machine tool for bending sheet and plate material, most commonly sheet metal. The E300P servo drive cnc press brake is primarily used for the bending and processing of stainless steel, iron, copper and aluminum, and features a high production efficiency and bending accuracy. The E300P servo drive cnc press brake forms predetermined bends by clamping the workpiece between a matching punch and die in different shapes, so that metal can be bent into various shapes. Features Anhui Yawei YWT series allow us to design a product that reacts in the most appropriate and responsive way to the mechanical solicitations, therefore guaranteeing a stable structure, thus a higher precision in bending. This feature is even enhanced by a system of manual crowning. Worth mentioning is also the possibility to add options and upgrades on the configuration, at later stage. Constructed of high quality parts and offering serious reliability , Y-axis Torsion bar syncro technology with high approach, bending and return speeds. Details Images ESTUN E300P Controller X, Y and R servo axes controlled by CAN bus
Crowing supports both mechanical and hydraulic modes Built in machine
work logic, multiple work modes Tools library and material table
I / O ports are freely confifigurable
USB interface for backup and upgrade
parameter backup / restore function
Chinese / English Optional
Metric / imperial optional France Schneider Electrics Stable France Schneider electrics to improve the positioning accuracy of X, Y Axis 42CrMo Toolings Each machine will be equipped with one set of top punch with segmented and one set of Multi V Die with different opening for various thickness of metal plate Mechanical Fast Clamps Mechanical fast clamps are equiped to change dies more convenient and safe Back Gauge AHYW press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best
repetitiveness and high precision in axes positioning. HIWIN Ball Screw & Linear Guide HIWIN High Precision Backgauge is equipped with fine ball screw and guide linear Back guage stop finger , X axis adjust , linear drive keep best precision (dual linear guide optional ) Backgauge Stopper Fingers Back gauge stopping finger, with manual transverse movement Manual Mechanical Crowning Table We have the crowning table by hand and motor. The structure of the press brake reflection compensation crowning table can promise the bending precision for angle and strightness when you bend the workpiece KACON Pedal Swich Movable KACON pedal switch from South Korea to improve the service life and operational sensitivity Safety Fence Protective guards on each side to protect the user during operation Production Process Packing&Shipping

Packaging
Size	(L) * (W) * (H)
Weight	T
Packaging Details	The normal package is water proof plastic package, the optional ply wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time. If container is too tigher, we will use pe film for packing or pack it according to customers special request.

Shipping
Means	by sea, by rail
Container	20' GP 40 'GP 40' HQ or OT RT
Shipping Details	According to the size and weight of machines, we will provide our customers with optimized shipping solution.

Company Profile Anhui Yawei Machine Tool Manufacturing Co.,ltd. was founded in 2005, the registered capital is 81.88 million, with 120 employee, floor space about 40000 square meters, the location is close to Nanjing Airport and near to Shanghai city. We specializes in exporting CNC Hydraulic Press Brake Machine, Hydraulic Shearing machine, CNC Fiber Laser Cutting Machine, CNC Robotic Arm, with over 120 different types. Our machines, which adopt advanced technology, have a high quality. The main electrical parts, hydraulic parts and the instrument of our machines are adopted the best products made by the famous manufacturer in the world. We have passed ISO9001 quality system certification and the European Union CE certification, etc., at the same time established a perfect market service system and the system of the mature. Based on the good quality and top technology on our machines, we sell well in various countries and regions over 90 in the world such as U.S.A, Canada, Europe, South American, Middle East, and Southeast Asia market. The history of our independent Import and Export experience is more than 12 years. We also make OEM machines for our European Agent, all of the configuration on the machines will according European standard and approved by customer satisfied. Advanced technologies, scientific management, wonderful products and approving service are kept on which we aim at. We want to cooperate with you to promote our sales and build a long term cooperation with you for future business. Best wishes for you and hope a better tomorrow for all of us! Facilities & Equipment 8m CNC large boring&milling machines 12m Large CNC Borning&milling machine for manufacture 8m, 10m, 12m sheet metal guillotine cutting machine and large metal sheet
press brake bending machines Heat treatment for main frame of Sheet Metal Machinery, mainly for Synchro CNC Pressbrake, Fiber laser Cutting Machines Customer Photos Customer Review Certification Our service Pre-Sales Service Technical and Sales team work * Inquiry and consulting support.
* Suggest solution
* View our Factory. After-Sales Service Engineers and Sales cooperate * Training how to install the machine, and how to use the machine.
* Engineers available to service machinery overseas. FAQ Q1. Are you a factory or a trading company?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than 15 years of manufacturing experience, and our products were exported to more than 90 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. What is your normal lead-time?
A: Lead-time for a routine order would typically be 25-30 days. However, this varies with a number of factors including order size, machine model, workpiece complexity and shop load, to mention a few. Lead times are provided with all quotations. Please advise us if a rush order is required and we can usually accommodate.
Q4. Where are you located? How do I get there?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai.
You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up. WELCOME TO VISIT OUR FACTORY!
