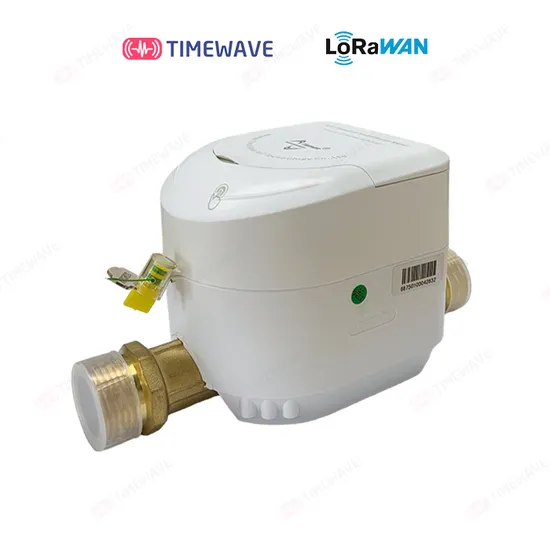

DN25 Lora/Lorawan Smart Ultrasonic Cold Water Flow Meter with Prepaid Remote Control and Valve Control, Copper Shell

Product Description

Product Overview The ultrasonic water meter adopts the design of integrated meter and valve. Combining metering and control valves, the meter has a compact structure.It can realize the remote prepayment of the system platform, which greatly facilitates the statistics and management of the user's water use behavior by the management department.The water meter has a built-in IoT module, supports IoT applications, and can regularly upload data such as water consumption and status information to the IoT platform.
The product implements the standard of "GB/T 778-2018 Measurement of Water Flow in Closed Full Pipeline Drinking Cold Water Meter and Hot Water Meter" and the verification regulation of "JJG 162-2019 Drinking Cold Water Meter".
Our Advantages 1. Integrated meter and valve, fully wrapped structure, anti-vandalism.
2. It has self-diagnosis function: flow sensor failure alarm, temperature sensor failure alarm, measurement over-range alarm, battery under-voltage alarm, valve failure alarm.
3. The product applies the company's patented flow measurement method (authorized by the invention patent) and intelligent data error correction technology, with high measurement accuracy and stability.
4. The combination of lithium battery and SPC can meet the current demand when the valve operates.
5. With photoelectric interface, it supports on-site reading of handheld infrared meter reading tools.
6. Built-in LoraWan IoT communication module, supporting IoT applications.
7. Support positive and negative two-way metering

Product Parameters

Display Description This meter adopts a digital and graphic LCD screen to present the measurement parameters and working status information to the user, as shown below:
You can use the matching magnetic stick to lightly touch the magnetic induction area on the shell to switch different function menus.
Overall dimension (unit: mm)
Company Profile Wuhan Timewave IoT Technology Co., Ltd. is a high tech enterprise specializing in the application of Low Power Wide Area Network (LPWAN) core technologies to establish an energy monitoring service platform. We provide a one-stop solution and service for our clients, offering metering and communication equipment, software system platforms, project construction, and daily operation and maintenance.
We independently develop and manufacture the "Timewave" brand LPWAN smart energy meters, smart water meters, smart gas meters, and alarm systems, among other communication terminal products. Coupled with the "Timewave Cloud" energy supervision platform, which encompasses metering, meter reading, billing, management, and control of water, electricity, gas, and heat, we can provide and implement automatic meter reading and billing, carbon emission monitoring, safe electricity use, energy consumption analysis, energy-saving analysis, transformer monitoring, data center environment monitoring, and intelligent operation and maintenance. We have a wealth of experience in the practical application of water and electricity meters using LoRaWAN technology.
The "Timewave Cloud" energy supervision platform is widely used in various settings, including campuses, supermarkets, apartments, hospitals, factories, parks, buildings, railways, airports, data centers, and more.We have connected over 200,000 IoT terminals, implemented over 200 projects, and expanded our reach to over 30 provinces and cities across the country. Moreover, we provide operation and maintenance support for ground projects in multiple countries and regions, including Indonesia, Turkmenistan, Laos, Nigeria, and Mongolia.
Timewave IoT Technology is committed to solving issues related to difficult meter reading, billing, payment, energy-saving and efficiency improvement, and safe energy use. We aspire to become a leader in the field of energy IoT and energy supervision platforms.
