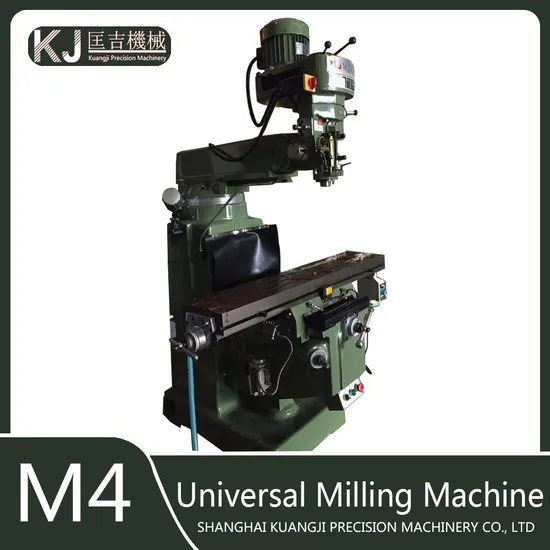

M4 Vertical Turret Type Metal Milling Machine, Taiwan Spindle
| US$1.00-2,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M4
Type
Tool Milling Machine
Object
Tool
Structure
Turret Type
Milling Cutter Type
Various Cutting Tools
Milling Cutter Structure
Various Structures
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Negotiate
Specification
1800mm*1800mm*2300mm, 1.2T
Trademark
Kuangji
Origin
Shanghai
Product Description
This machine can be widely used in the machining plane and any Angle inclined plane, can be milling slot, drilling, reaming, using special tools can also boring. The milling head can be rotated 90° left or right, 45° forward or backward, and the ram can be rotated 180° horizontally. The spindle has a high speed, and has a wide speed range, can realize automatic feed and overload protection safety device. The spindle sleeve and the machine tool guide rail are specially treated, and there are wear-resistant pieces between the table and the saddle, the saddle and the lifting table guide rail, which can reduce the friction between the sliding guide rail pair, extend the service life of the machine tool, and have a satisfactory appearance and a good structural design, which is an ideal universal equipment for metal processing.| model | M3/ M4 | M5/ DM6 | |
| name | |||
| Workbench area | 1270*254 | 1370*305 1524*305 | |
| Worktable load (kgs) | 300 | 350 420 | |
| T-shaped slots in work (number size spacing) (mm | 3-16*65 | ||
| Left and right stroke (X) (mm) | 760 | 860 1120 | |
| Front and rear travel (Y) (mm) | 380 | 390 430 | |
| Up and down stroke (Z) (mm) | 430 | 450 550 | |
| X-axis screw specification | Tr32x5-7e | ||
| Y-axis screw specification | Tr32x5LH-7e | ||
| Z-axis screw specifications | Tr32x5LH-7e | ||
| Spindle taper | R8/NT30 | R8/NT30 NT40 | |
| Spindle stroke (mm) | 127 | ||
| Spindle speed | 16speed(steps)/variable | ||
| Spindle feed (mm) | 0.076/0.003 0.38/0.0015 0.203/0.008 | ||
| Main spindle low speed (r/min) | 66,110,175,270,550,930,1460,2270 | ||
| Main spindle high speed (r/min) | 132,220,350,540,1100,1860,2920,4200,4540/ 60,5400 | ||
| Spindle diameter | 85 | 85 105 | |
| Distance from spindle center to column surface (minimum mm) | 120 | 130 | |
| Distance from spindle center to column surface (maximum mm) | 720 | 630 | |
| Distance from spindle nose to workbench (minimum mm) | 100/110 | 120 | |
| Distance from spindle nose to workbench (maximum mm) | 450/460 | 480 630 | |
| Voltage (V) | 380 | ||
| Frequency (Hz) | 50/60 | ||
| Head motor | 3HP/2.2KW 5HP/3.75KW | ||
| Cooling motor | 1/8HP | ||
| Lifting motor | 1/2HP(only DM6 have) | ||
| Machine net weight | 1200kg/1300kg | 1450 kg 1850kg | |
