Rotary Dryer in Metallurgical and Chemical Industry

Product Description

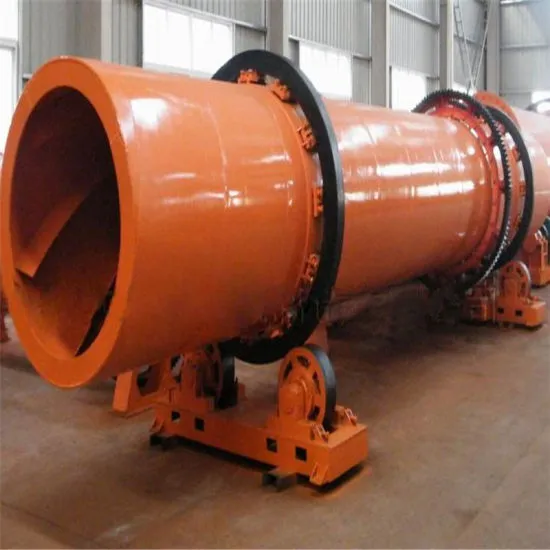

Rotary dryer is a kind of highly efficient, stable and reliable heating drying equipment, and its performance is better than tube bundle rotary dryer, blade rotary dryer. Drying machine adopts "center-adjusting roller device", making the cooperation of roller and rolling ring always show linear contact which greatly reduces the wear and power consumption. This machinery is applied in the materials like coal slurry, mud, felted gypsum, Muddy, high-moisture swell soil, electroplate mud and so on.

Application and Operating Principle
The moist material enters the dryer from one end. With the stirring of the uniformly distributed lifting blade inside the shell, the material disperses equably inside the dryer. In this way, the material is fully exposure in the flowing hot-air, and the drying process is quickened. During the drying process, the material is moved manageably to the other end of the dryer under the effect of both the gradient and the hot-air. Thus the finished product is produced.
The rotary dryer is applied in the drying of the material, which requires for low-temperature drying and mass continuous drying, for example, the drying of large particles and large specific gravity, such as the ore, blast-furnace slag, coal, metal power, phosphate fertilizer, thiamine, and so on, in the industries of chemical, mineral, metallurgy and etc; and the drying of powdery and granular material of special requirements, such as the HP foaming agent, vinasse slag, light calcium carbonate, activated clay, magnetic powder, graphite, herb residue, and etc.

Characteristics
Of high degree of mechanization and productivity;
Of low consumption, with low resistance generated when the fluid goes through the shell;
Of strong adaptability for the material;
Of stable operation, low costs, and great drying uniformity.
Technical Parameters of Rotary Dryer

Specification(m)	Volume(m³)	Capacity(t/h)	Installation Inclination(%)	Max. Inlet Gas Temperature(ºC)	Main Motor(kw)	Total Weight(t)
Φ1.2×8.0	9.0	1.9-2.4	3-5	700-800	7.5	9
Φ1.2×10	11.3	2.4-3.0	3-5	700-800	7.5	11
Φ1.5×12	21.2	4.5-5.7	3-5	700-800	15	18.5
Φ1.5×14	24.7	5.3-6.6	3-5	700-800	15	19.7
Φ1.5×15	26.5	5.7-7.1	3-5	700-800	15	20.5
Φ1.8×12	30.5	6.5-8.1	3-5	700-800	18.5	21.5
Φ1.8×14	35.6	7.6-9.5	3-5	700-800	18.5	23
Φ2.2×12	45.6	9.7-12.2	3-5	700-800	22	33.5
Φ2.2×14	53.2	11.4-14.2	3-5	700-800	22	36
Φ2.2×16	60.8	13.0-16.2	3-5	700-800	22	38
Φ2.4×14	63.3	13.5-16.9	3-5	700-800	37	45
Φ2.4×18	81.4	17.4-21.7	3-5	700-800	37	49
Φ2.4×20	90.4	19.3-24.1	3-5	700-800	45	54
Φ2.4×22	99.5	21.2-26.5	3-5	700-800	45	58
Φ2.6×24	127.4	27.4-34.0	3-5	700-800	55	73
Φ3.0×20	141.3	30.1-37.7	3-5	700-800	75	85
Φ3.0×25	176.6	37.7-47.1	3-5	700-800	75	95
Φ3.2×25	201	42.9-53.6	3-5	700-800	90	110
Φ3.6×28	285	60.8-76.0	3-5	700-800	160	135

Advantages of rotary dryer:
1. The rotary dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient transportation.
2. Performance Characteristics of sludge dryer: this series drier is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical.
3. It can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used.
