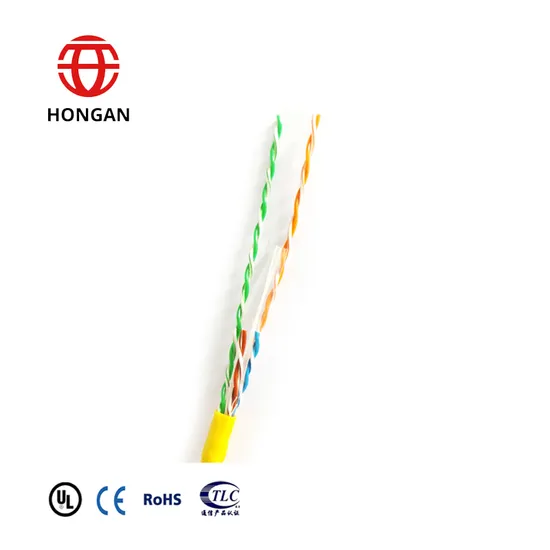

Solid Bare Copper Conductor CAT6 Twisted Cable

Product Description

Product Description
- Characteristics of product:
1.More bandwidth excess than 250MHz standard required;
2.Support 10-Gigabit ethernet network transmission requirement;
2.Comply with ROHS standard;
3.The products of special outer sheath or purpose can be designed according to customer's demands.
-Product Applications:
1.10 Base-T4
2.100 Base -TX
3.100 Base-VG-ANYLAN
4.155 Mbps ATM
5.622 Mbps ATM
6.1000 Base-T
7.1000 Base-TX
8.10G Base-T
-Material instruction:
1.Conductor:24AWG Copper;
2.Insulation:Solid HDPE or skin-Foam-Skin PE;
3.Sheath:Environment Friendly PVC or Flame Resistance PE or Low Smoke Zero Halogen Polyolefin(LSZHP).
-Physical Electrical Characteristics:
1.D.C resistance(max):7.5Ω/100m at 20ºC;
2.Mutual capacitance(max):5.6nF/100m;
3.Dielectric strength between conductors(min):2.5kV/2s;
4.Impedance:1-100 MHz 100+/-15Ω;
5.Differential phase delay(max):30ns/100m;
6.Installation temperature:-20ºC-+60ºC;
7.Permitted bend radius:Over 8 times diameter of the cable.

Transmission Performance
Frequency(MHz)	Attenuation(Max)(dB/100m)	Next(Min) (dB/100m)	Ps next(Min)(dB/100m)	Elfext(Min)(dB/100m)	PS Elfext(Min)(dB/100m)	RL (Min)(dB)	Phase Velocity(Min)(m/s)	Phase delay(Max)(ns/100m)
4	3.8	67	64	56	53	23	0.604c	552
10	6.0	61	58	48	45	25	0.612c	545
16	7.6	58	55	44	41	25	0.614c	543
20	8.5	56	53	42	39	25	0.615c	542
31.25	10.7	53	50	38	35	23.6	0.617c	540
62.5	15.4	49	46	32	29	21.5	0.619c	539
100	19.8	46	43	28	25	20.1	0.620c	538
200	29	41	38	22	19	18	0.622c	537
250	32.8	40	37	20	17	17.3	0.622c	536

Detailded Picture
Production Line
Certification
Company Information
Hongan Fiber Optical Cable Company was established in 1994 which was expanded in 1998,2001,2012 respectively. Advanced fiber optical cable lines and inspection equipments were imported from Switzerland,Finland,USA,Japan and other countries.The main products include:outerdoor fiber optical cable,indoor fiber optical cable,FTTH fiber optical cable, special fiber optical cable (include OPLC hybrid cable,ADSS fiber optical cable,under-water fiber optical cable,micro fiber optical cable, dry outdoor fiber optical cable.flexible armored indoor fiber optical cable,low temperature resistance fiber optical cable.high temperature resistance fiber optical cable etc.) Annual production capacity reaches 150,000 km.
Hongan Optical Cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system.OHSAS18001 occupational health and safety management system, and its fiber optical cable meet the requirements of European CE.ROHS,Chinese TLC. The products are mainly used in China Mobile,China Telecom,China Broadcast,China Defense,Railway,Oil Fields and other communication operators ,also export to Europe, Middle East,South-East Asia,America,Africa etc.
FAQ
-Q1:Are you a Factory or Trade Company?A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.
Welcome you select our products! Any inquiry, pls feel free to contact with us!
