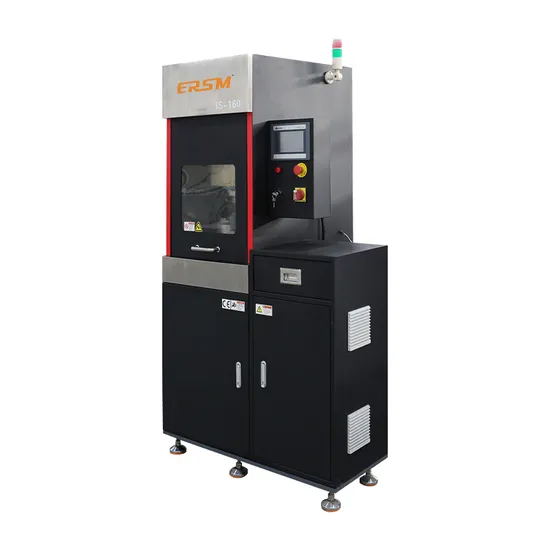

Maximum Grinding Diameter 160mm Auto Grinder Turret Punch Press Tool Grinding Machine
Basic Info.
Model NO.
IS-160
Type
Tool Grinding Machine
Processing Object
Cam
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Precision
High Precision
Certification
CE
Condition
New
Model
Is-160
Voltage
AC 380V 50Hz
Power of Main Motor
2.2kw 2840rpm
Motor of Rotating Table
0.1kw 1440rpm
Servo Motor
0.75kw
Cooling Motor
0.045kw
Maximum Grinding Diameter
160mm
Maximum Grinding Stroke
200mm
The Diameter of Grinding Wheel
135mm
Minimum Step
0.01mm
Weight
650kg
Transport Package
Wooden Box
Specification
820*1020*1850mm
Trademark
ERSM
Origin
China
Production Capacity
50sets/Month
Packaging & Delivery
Package Size
850.00cm * 120.00cm * 200.00cm
Package Gross Weight
650.000kg
Product Description
Product DescriptionThe benefits of accurate regrinding include:
1.Burr-free, quality parts straight off the punch press
2.Longer tool life for reduced tooling costs
3.No scrapped or wasted sheets due to tooling malfunction
4.Reduced wear on your punch press
Product Parameters
| Model | IS-160 | WG-150 |
| Voltage | AC 380V 50HZ | AC380V 50HZ |
| Power of Main Motor | 2.2KW 2840RPM | 0.55KW 60 RPM |
| Motor of Rotating Table | 0.1KW 1440RPM | 0.1KW 1440 RPM |
| Servo Motor | 0.75KW | 0.55KW |
| Cooling Motor | 0.045KW | 0.12KW |
| Maximum Grinding Diameter | 160mm | 200mm |
| Maximum Grinding Stroke | 200mm | 250mm |
| The Diameter of Grinding Wheel | 135mm | 150mm |
| Minimum step | 0.01mm | 0.01mm |
| Measurement (L*W*H) | 820*1020*1850mm | 820*820*1810mm |
| Weight | 650KG | 600KG |
Detailed Photos
FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
3.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
4.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
5.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.
