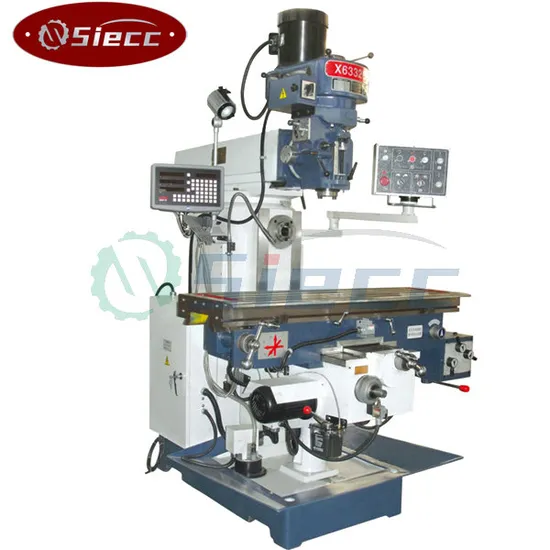

Multifunction Universal Rotary Head Turret Milling Machine Tools X6332b
| US$4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6332B
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Wooden Box Packaged
Specification
X6332B
Trademark
SIECC
Origin
Jiangsu/China
Production Capacity
1000 Sets/Year
Product Description
Technical parameters:| Specification | Units | X6332B |
| Work table size | mm | 1500×320 |
| Table travel | mm | 840/320/400 |
| X/Y feed | mm/min | 22-555(750) |
| Z feed | mm/min | 560 |
| spindle rotate speed Horizontal | r/min | 60-1800 |
| spindle rotate speed Vertical | r/min | 66-4540 |
| Main motor power | kw | 3.7 |
| Machine size | mm | 1720×1520×2225 |
| Net weight | kg | 1550 |
| Spindle taper | 7:24/ISO40 | |
| Distance between spindle nose and table surface | mm | 155-455 |
| Distance between spindle and colomn | mm | 0-300 |
| Spindle speed range | r/min | 66-4540 |
| Spindle travel | mm | 120 |
