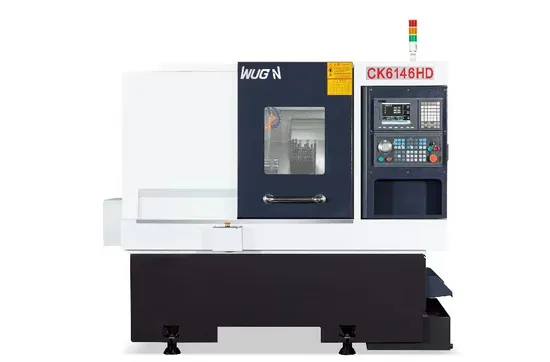

Ck6146HD Milling Machining Center Spectr Automatic Conventional CNC Turning Lathe Manual Machine for Metal/Wood/Plastic Cutting Drilling Router Tapping Engravin
| US$15,876.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6146HD
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max. Swing Diameter
400mm
Max. Turning Diameter
300mm
X/Z Axis Travel
800/300mm
Hydraulic Chuck
6inch
Spindle Speed
20-4000rpm
Spindle Motor Power
5.5kw
C-Axis Indexing Function
360°(0.01°)
Motor Power(X/Z)
1.3/1.3kw
Fast Movement Speed(X/Z)
30/30 M/Min
Guide(X)
Msr25*700
Guide(Z)
Msr30*620
Transport Package
Wooden Case/ Iron Box
Specification
2000*1600*1800mm
Trademark
wugan
Origin
China
HS Code
8458110090
Production Capacity
200pieces/Year
Product Description
Product Description1. The whole casting bed of the machine tool is made of resin sand casting, effective treatment, super-audio quenching, stable structure and reliable rigidity.
2. The protection inside the machine tool is the overall movement protection, which is 70% higher than the protection effect in the traditional machine tool. It effectively blocks the iron slag and cutting water and debris from entering the screw guide rail, which better protects the electrical equipment. Not only for machine tools
Maintenance and cleaning work, delaying the service life of the machine
3. The machine control system and the servo are both based on the absolute value of the bus.
4. This machine tool is widely used in hardware, bathroom, home appliance and other industries, and has a wide range of uses.
Product Parameters
| Description | unit | CK6146HD | ||
| Travel | Max. Swing Diameter | mm | 400 | |
| Max. Turning Diameter | mm | 300 | ||
| X axis travel | mm | 800 | ||
| Z axis travel | mm | 300 | ||
| bed inclination | spend | 30 | ||
| Spindle | Center height of spindle and tool holder plate | mm | 50 | |
| spindle nose | A2-5 | |||
| Hydraulic chuck | inch | 6 | ||
| spindle bore diameter | mm | 56 | ||
| Through bar diameter | mm | 46 | ||
| Spindle speed | r/min | 20-4000 | ||
| Spindle motor power | kw | 5.5 | ||
| C-axis indexing function | spend | 360°(0.01°) | ||
| Axial and drive | Motor Power | x | kw | 1.3 |
| z | kw | 1.3 | ||
| Fast movement speed | x | m/min | 30 | |
| z | m/min | 30 | ||
| guide | x | mm | MSR25*700 | |
| z | mm | MSR30*620 | ||
| lead screw | x | mm | R32*718 | |
| z | mm | R32*591 | ||
| Repeatability | x | mm | ±0.0025 | |
| z | mm | ±0.0025 | ||
| c | spend | 0.01° | ||
| Other | Lubrication pump | capacity | L | 1.5 |
| power | kw | 0.03 | ||
| hydraulic station | capacity | L | 36 | |
| power | kw | 0.75 | ||
| coolant | capacity | L | 40 | |
| power | kw | 0.15 | ||
| Height of spindle center from ground | mm | 1100 | ||
| Machine size(L*W*H) | mm | 2000*1600*1800 | ||
| Total machine power | kw | 8.5 | ||
| Total machine weight | T | 3 | ||
