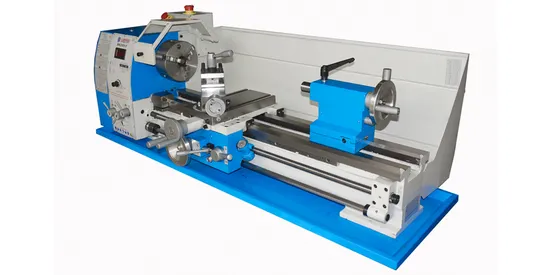

Weiss Factory Manufactured Wbl290f High Precision Lathe Machine with Metal Gears

Product Description

WEISS MODEL	WBL290F
ITEM NO	10102295
Distance between centers	700mm
Swing over bed	Ø280mm
Swing over cross slide	Ø165mm
Width of bed	180mm
Taper of spindle bore	MT5
Spindle bore	38mm
Number of spindle speeds	Variable
Range of spindle speeds	125-2000rpm
Range of inch threads (imperial version)	8-56 T.P.I
Range of metric threads (metric version)	0.2-3.5mm
Top slide travel	60mm
Cross slide travel	140mm
Tailstock quill travel	80mm
Taper of tailstock quill	MT3
Motor (brushless)	1500W

Tools in toolbox

Standard Accessories	Optional Accessories
160MM 3-JAW Chuck	Steady Rest
Chip Tray	Follow Rest
Splash Guard	Face Plate
Toolbox and Tools	4-Jaw chuck 160mm
	Threading Diail
	2-Axis DRO (Magnetic Scales)
	Stand
	Luxury Stand
	Quick chage Tool Post (TOOA1)
	Turning Tools

Details

Big Spindle Bore with MT#5 Taper: equipped with standard D1-4 Camlock spindle which is dynamically balanced, supported by high percision, Class 5, adjustable tapered rooler bearings. Change Gear:ped all metal gears, providing 21 kinds of inch threads and 12 kinds of metric threads cutting; equipped with protective QKS8 door switch. Gearbox: Provides both right and left hand threading and 3kinds of feeding speeds; has separate leadscrew and feed rod
Electronic Driving System: 2 HP powerfil brushless;high quality electronics ; braking resistors increase the stability of the electrical systerm; brushless motor(high efficiency,quiet while running, longer life, low maintenance cost) Apron: Provides power cross& longitudinal feed; feed rod with clutch system and micrometer carriage stop provide more pretection;Feed rod resistance power can be adjusted by the clutch Tailstock: WBL290F tailstock with quick lock handle Tailstock lock system features a drive hub to ensure consistent draw-down alignment every timeDelivery
Stockroom
FAQ
1. What is your Warranty? 1 year, including accessories. We always offer good after sell service and professional technical support.
2. Can we pay by L/C or others?
Yes ,you can make the payment by T/T, Paypal etc.
3. What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
4. What is your lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed.
6. Can we purchase the accessories only?
Yes, we sell accessories of our machine as well.
