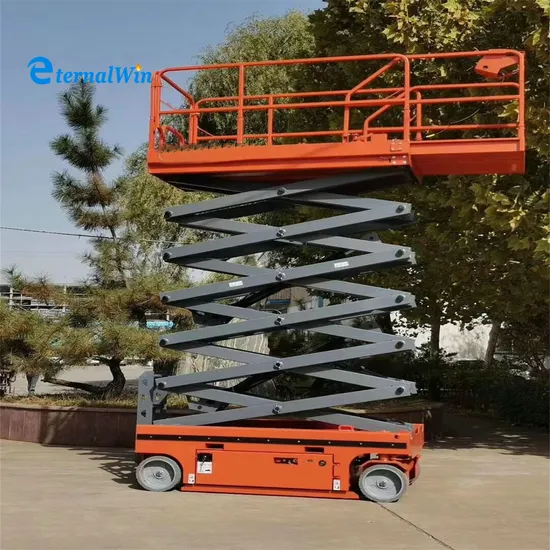

Automatic Hydraulic Scissor Lifting Elevator Platform Self Propelled Full Electric Scissors Aerial Work Platform

Product Description

Automatic Hydraulic Scissor Lifting Elevator Platform Self Propelled Full Electric Scissors Aerial Work Platform
HENAN ETERNALWIN MACHINERY EQUIPMENT CO.LTD is a domestic professional manufacturer of hydraulic lifting platforms,
Our company has a strong technical team, has developed a variety of hydraulic lifting platform products, has made a number of technical improvements, has a greater advantage in intelligence and reliability,and has applied for a number of technical patents, becoming a rising star in the industry.
Our company independently developed and produced scissor lift series, aluminum alloy lift series, rail-type lifting platform, cylinder lift series and boarding bridges. Products are widely used in construction sites, factories, warehouses, stations, hotels, airports, docks, gas stations, stadiums, overhead pipelines and other high-altitude equipment installation, maintenance, cleaning and other scenarios, and also used in lifting equipment maintenance, field power equipment maintenance, etc.
Details of Scissor Lift :

Models	EW-LP06A	EW-LP06	EW-LP08A	EW-LP08	EW-LP10	EW-LP12	EW-LP14
Platform height maximum	6.00m	6.00m	8.00m	8.00m	10.00m	12.00m	14.00m
platform size outside	2.26×0.81×1.1m	2.26×1.13×1.1m	2.26×0.81×1.1m	2.26×1.13×1.1m	2.26×1.13×1.1m	2.26×1.13×1.1m	2.26×1.13×1.1m
Slide-out platform extension deck	0.9m	0.9m	0.9m	0.9m	0.9m	0.9m	0.9m
Overall size(fold)	2.475×0.81×1.708m	2.475×1.15×1.708m	2.475×0.81×1.836m	2.475×1.15×1.836m	2.475×1.15×1.946m	2.475×1.15×2.053m	2.475×1.15×2.166m
Overall size(unfold)	2.475×0.81×2.158m	2.475×1.15×2.158m	2.475×0.81×2.286m	2.475×1.15×2.286m	2.475×1.15×2.414m	2.475×1.15×2.542m	2.475×1.15×2.59m
Ground clearance	0.1/0.02m	0.1/0.02m	0.1/0.02m	0.1/0.02m	0.1/0.02m	0.1/0.02m	0.1/0.02m
Wheelbase	1.89m	1.89m	1.89m	1.89m	1.89m	1.89m	1.89m
Capacity	380kg	550kg	230kg	450kg	320kg	320kg	320kg
Drive height	full height	full height	full height	full height	full height	full height	full height
Drive speed - stowed	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Drive speed - raised	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Gradeability-stowed	25%	25%	25%	25%	25%	25%	25%
Inside Turning Radius	0	0	0	0	0	0	0
Outside Turning Radius	3.1m	2.2m	3.1m	2.2m	2.2m	2.2m	2.2m
Raise / lower speed	3-5m/min	3-5m/min	3-5m/min	3-5m/min	3-5m/min	3-5m/min	3-5m/min
Tyres - solid non-marking	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm
Power source	24V/4.5kw	24V/4.5kw	24V/4.5kw	24V/4.5kw	24V/4.5kw	24V/4.5kw	24V/4.5kw
Battery	4×6V/225ah	4×6V/225ah	4×6V/225ah	4×6V/225ah	4×6V/225ah	4×6V/225ah	4×6V/225ah
Charger	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A
Maximum safe working angle	1.5°/3°	2°/3°	1.5°/3°	2°/3°	2°/3°	2°/3°	2°/3°
Weight	1850kg	2060kg	1980kg	2190kg	2430kg

Scissor Lift Platform is driven by hydraulic principle. Hydraulic motor supply power for driving and lifting. It is different drive model with Electrical motor drive. Hydraulic self propelled scissor lift is famous for its high precision, great sensitivity, low ware and lower noise. Compact structure can be modularized into a small space;With a new electric propulsion system, ride provides more flexibility,more environmentally friendly exhaust emissions.Automatic hole protection system, Scissor Lift Platform moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.
1. Explosion-proof valves 2. Spillover valve 3. Emergency decline valve 4. Check Valve 5. Adjustment Valve 6. Tilt Angle Sensor 7.Automatic pothole protection 8.Self-lock gate on platform 9.Safety Maintaince Rod
if you need it ,pls let me know the following questions:
1.Lifting capacity ?
2.Lifting height ?
3.Types?
