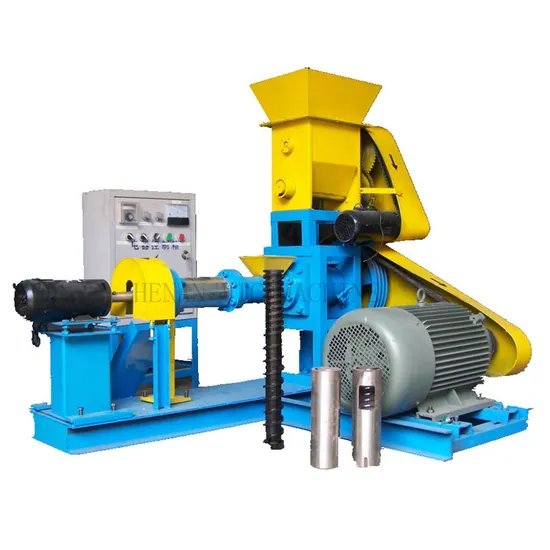

Dry Way Animal Feed Extruding Equipment
| US$1,800.00-2,200.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DGP-50C
Processing Object
Mixed Feed
Processing Technics
Crushing-before-Mixing
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Flat Die Pelletizer
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Granular
Warranty
1 year
CE,SGS
Yes
English Manual
Yes
Certificate of Origin
Yes
Delivery Time
7-10days
Payment Term
50% T/T as Deposit, The Balance Will Be Paid After
Warranty Time
1 Year
Installation and Adjustment
Yes
Transport Package
Wooden Box
Specification
CE, SGS
Trademark
VIC
Origin
China
HS Code
84748020
Production Capacity
300sets/Year
Product Description
Dry Way Animal Feed Extruding EquipmentApplication:
The raw materials can be wheat, soybean, cake and other leftovers etc. The final products floating pellets are widely used in frogs, aquatic, ornamental fish, pet feed, fish farmers, small feed mill.
Features:
(1)The cutting structure is very advanced with cutter shaft fixed spring to cut to realize. Infinitely speed change; the final output product can be cut freely in different length according to requirement.
(2)The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed; it's with wear-resisting and long life.
(3)In order to ensure quality and capacity, there is special pressurization die device and the electric heating devices improve the feed expansion rate.
(4)The main bearing is from Japanese and Sweden SKF bearing to ensure its safety. The main motor is Y-Series three phrase motor.
(5)The floating pellets will float on the water for about 12hours without spreading. The pellets are no pollution and easy for working members to observe. The materials is health and easy for fish and poultry to absorb. Usually if use floating pellet feed can save 8-15% feed than to use powder feed.
Main data:
| Model | Capacity(t/h) | Main power(KW) | Feeder power(KW) | Screw diameter(mm) | Cutting power(KW) | Packing weight(kg) |
| DGP40-C | 0.03-0.04 | 5.5 | 0.4 | Φ40 | 0.4 | 280 |
| DGP50-C | 0.06-0.08 | 7.5-11 | 0.4 | Φ50 | 0.4 | 360 |
| DGP60-C | 0.12-0.15 | 15 | 0.4 | φ60 | 0.4 | 386 |
| DGP70-B | 0.18-0.2 | 18.5 | 0.4 | φ70 | 0.4 | 640 |
| DGP80-B | 0.2-0.25 | 22 | 0.4 | φ80 | 0.6 | 750 |
| DGP90-B | 0.32-0.35 | 37 | 0.6 | φ90 | 0.8 | 1050 |
| DGP120-B | 0.5-0.6 | 55 | 1.1 | φ120 | 2.2 | 1880 |
| DGP135-B | 0.7-0.8 | 75 | 1.1 | φ133 | 2.2 | 2100 |
| DGP160-B | 1-1.2 | 90 | 1.5 | φ155 | 2.2 | 2500 |
| DGP200-B | 1.8-2.0 | 132 | 1.5 | φ195 | 3.0 | 3000 |
More photos
Parts
Package:
Final product:
Our factory
Our certificate:
After-sales service
