Reflux Still Column SS304 with Gin Basket for Moonshine Distiller

Product Description

Product Description

Product Name:	Reflux Still Column SS304 with Gin Basket for Moonshine Distiller
Available Size(inch):	3", 4", 6", 8", 12" or per custom
Weight(KGS):	18KGS - 24KGS per size
Materials:	SUS304/SUS316L/red copper
Surface Treament:	Mirror polishing
Connection Way:	Tri clamp or flange
Usage:	Moonshine distilling of vodka, gin, whiskey, brandy
Packing:	Bubble bag and plywood crate

This is a 4" diameter red copper bubble cap plate column with four 3" diameter sight glasses viewing. The column is built in modulars type and has tri clamp connections. So it's very easy for distillers to increase or decrease the number of modulars in order to achieve different proof of spirit and favor. The modulars design also makes cleaning become very easy. This column can be run as a pot still to produce whiskey if you take out the bubble cap plates, or run as a reflux still to produce high puritiy spirit like Vodka when you use the bubble cap plates. The column includes following components:

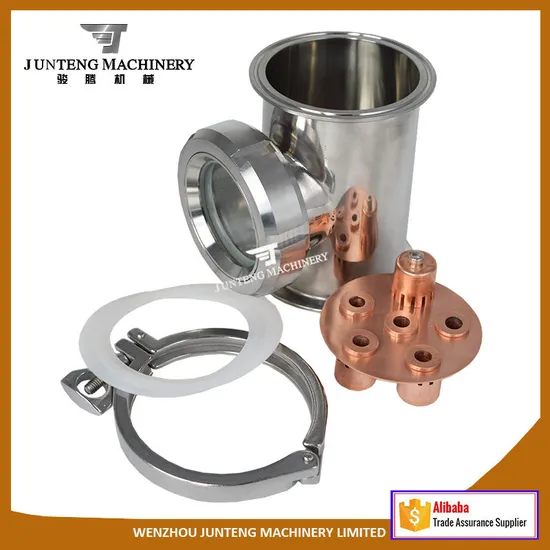

4" diameter column with 3" diameter sight glass viewing loaded with red copper bubble cap plates 4" diameter gatling gun dephlegmator mounted on the top of the column for pre-condensor 4" to 2" tri clamp concentric reducer mounted with dial thermometer that you can read temperature in both of and 2" 180 degree tri clamp elbow. 2pcs of 90 degree tri clamp elbow is also an optional choice 2" diamter gatling gun product condensor Proffessional parrot with a tri clamp drain valve for first shots Push connect cooling kit with flow control for the moonshine stills and distilling columns
Guidance of Assembly
1. Check all parts you received and make sure all 2. Mount the red copper bubble cap plate with the
are received well. sight glass column in this way.

3. Put all well mounted column on the top of boiler 4. Connect the reducer, dephlegmator, product
by tri clamp and gaskets. product condensor and parrot to the column.

5. Make a correct wire connection for the control 6. Mount the push connect cooling kit to the still in
panel and electric heating element. order to have good flow control during distilling.
