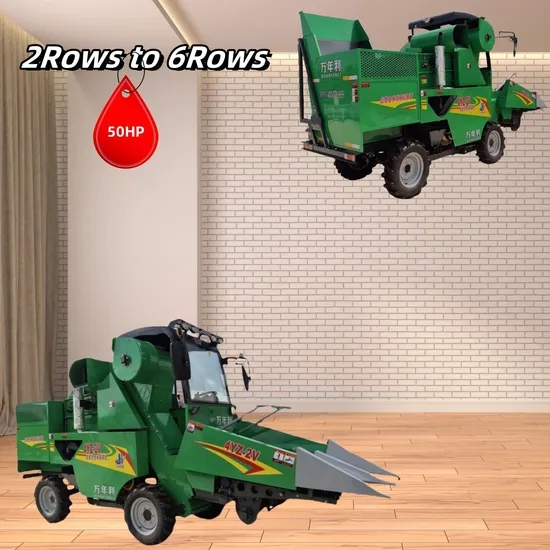

China Corn Combine Harvester with New Design for Corn Picker Harvester

Product Description

Product Description
1.With 50 HP engine, fuel efficient and durable, powerful.
2.Increase the granary, reduce the number and time of unloading grain.
3.Install anti-entanglement plate to prevent debris from winding bearings.
4.Equipped with plate cutting table, optional combination cutting table tip. The cutting table can be harvested close to the ground.
5.The outside Angle is adjustable.It can realize the harvest of both row and non-row and lodging corn, and has a wide range of operations
6. Equipped with 4WD type, It not only ensures the power and passability, but also takes into account the fuel economy.
7.The front axle and gearbox are made by ourselves,many companies purchased it from our factory.

Product feature
1. strong power,flexible and efficient
With 50 horsepower engine, full of power; Short wheelbase design for front and rear wheels,Small turning radius,flexible steering, high operating efficiency
2. Harvest on the slope, handle it well
Four-wheel drive, short body, low center of gravity.The slope harvest is safer and more passable.
3. Stable, reliable and durable
The chassis is made of high-strength materials, Enhanced travel gearbox for higher reliability.
4. Easy to operate and comfortable to drive
Optimized control mechanism,steering wheel Angle is adjustable,Extended seat, driving experience is more comfortable.
Product Parameter

No.	Model	unit	4 YZ - 2 V
1	Number of rows	pcs	2
2	Power	KW/HP	36.8KW/50HP
3	Dimension	mm	5400* 1750*2820
4	Row width	mm	600
5	Driving model	/	4*4
6	Tyre size(F/R)	/	F:6.0-16 R:6.0-16
7	video surveillance	/	/
8	Axle base	mm	2050
9	Wheel base(F/R)	mm	1210/1180
10	Transmission type	/	Mechnical+HST
11	Weight	kg	3150
12	Working efficiency	hm2/h	0.3~0.7
13	Grain Tank Capacity	m³	0.8m³
14	Qty of stripping rollers	pcs	8
15	Max. unloading height	mm	2150
16	Engine structure type	/	Vertical, in-line, water-cooled, four-stroke

Company Profile
Productive process
Exhibition
Packaging & Shipping
We provide professional packaging and transportation to ensure your goods arrive safely at destination.
Shipping by truck, Container, roll on/roll off ship, bulk ship and China-Europe Railway Express
Choosing the right shipping method for you at Jianghua Machinery Manufacture.
After sales service 24-hour remote on-line service We owns an extraordinary service team. We're realizing the localized overseas service, which covers digitalized service&training methods, 24-hour remote on-line service and serve our customers seamlessly.
Main products
FAQ Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Shanxian County,Heze City,Shandong Province,China.
Q2:What after-sales service can your company provide?
A2:We can provide technical support and online training.
Q3:How about your price?
A3:We sell every machine at a low pirce for the same quality, we leave the maximum profit to customers.
Q4:It can be customized?
A4:Of course,you only need to provide customized requirements
Q5:Can we have some samples?
A5:Of course. We understand the importance of testing some samples before placing an order.
Q6:What is the MOQ?
A6:Normally the MOQ is one set.There are some exceptions to this requirement because of the type of machines.
Q7:What's the payment terms?
A7:For the samples, 100% will be paid before the start of production. For normally orders, at least 30% deposit +70% balance (balance payment before shipment)
Q8:What is your delivery time?
A8:Normally within 15days,if it is high season and the order is very big,it needs 30days.
