Wood Log Skin Remove Machine with 55kw Motor
| US$28,000.00-56,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
820
Warranty
2 Years
Machine Length
30m
Shipment
12m Flat+Containers
Main Motor
55kw+110kw+5.5kw+3kw*6
Machine Weight
35 Tons
Conveyors
5m+8m+6m+12m+12m
Debarker
Single Rotor,12m Length
Disc Wood Chipper
35cm*35cm Feed in,110kw Main Motor
Screen
1.5m*3m
Transport Package
Plywood Box
Specification
depend on model
Trademark
HX
Origin
China
HS Code
847930000
Production Capacity
900 Sets Per Year
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
12.000kg
Product Description
Debarker + wood chipper + screen line layout:(making wood chip for paper pulp mills)Our Wood peeling machine has strong adaptability to wood, for different tree species, diameter, length and shape of wood segment peeling, suitable for small and medium-sized paper mills, pulp mills, wood chip factories, wood processing plants, forest plants, lumber yard, wood-based board factories, etc.
Debarker Parameters:
| Model | HX630 | HX850 | HX1020 |
| Applied wood log diameter | 5cm-45cm | 15cm-55cm | 20cm-75cm |
| Capacity per hour | 15-25tons | 20-30 tons | 30-50 tons |
| Roller diameter | 630mm | 850mm | 1020mm |
| Debarking rate | >98% | >98% | >98% |
| Main motor power | 45KW | 55KW | 75KW |
| Roller length | 11m | 11m | 11m |
| Roller rotation speed | 65r/min | 61r/min | 55r/min |
| Machine size(m) | 11.5*2.2*2.63 | 11.5*2.4*2.73 | 11.5*2.65*3.3 |
Disc wood chipper parameters:
| Model | HX1710 | HX1300 | HX1216 | HX1800 |
| Rotation speed(rpm) | 635 | 650 | 620 | 420 |
| Blade QTY(piece) | 6 | 6 | 6 | 6 |
| Chip size(mm) | 20-35 | 20-35 | 20-35 | 20-35 |
| Input size(mm) | 270x270 | 350x350 | 420x420 | 500x500 |
| capacity(TPH) | 5-10 | 10-15 | 15-25 | 20-40 |
| Main power(kw) | 55 | 90 | 132 | 160 |
| Feed + discharge motor (kw) | 3+3 | 3+3 | 3+3 | 5.5+5.5 |
| Disc diameter (mm) | 1150 | 1300 | 1600 | 1800 |
| Weight (t) | 2.8 | 3.6 | 6.58 | 7.5 |
| Feed conveyor width (mm) | 350 | 350 | 470 | 550 |
| Feed conveyor length (mm) | 4000 | 4000 | 6000 | 6000 |
| Discharge conveyor width (mm) | 600 | 600 | 900 | 1300 |
| Discharge conveyor length (mm) | 10000 | 10000 | 10000 | 10000 |
Screen parameters:
| Model | layer quantity | Main motor | Shaft rotation | size | Mesh size(mm) |
| Virbation screen-A | 3 | 3KW | 175rpm | (1.6m-2.5m)*(2m-4m ) or customized | customized |
| Vibration screen-B | 3 | 5KW | 150rpm | (2.5m-3.5m)*(1.5m-2m) or customized | customized |
| Drum rotation screen | 1 or 2 or 3 | 5.5KW -21KW | 20-30rpm | 1.6m diameter *(4m-6m length) or customized | customized |

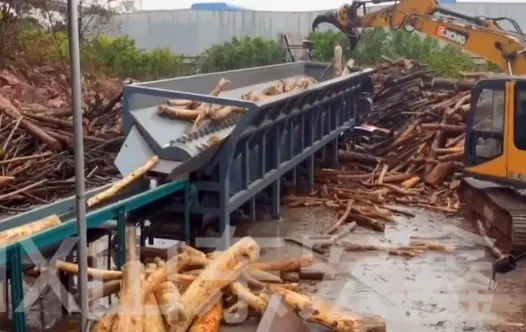

Working site
Screen:
Manufacture
Clients visiting
Our Mill
Certificate:
