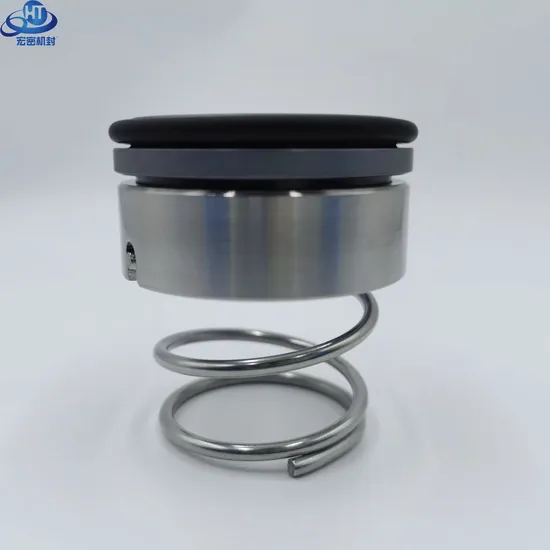

Outlet OEM/ODM M3n Water Pump Eagle Burgman Bgm Shaft Seal Sewage Pumps Submersible Pumps Chemical Pumps Single Face Mechanical Seal

Outlet OEM/ODM M3n Water Pump Eagle Burgman Bgm Shaft Seal Sewage Pumps Submersible Pumps Chemical Pumps Single Face Mechanical Seal

US$2.80-42.00 1 Set (MOQ)

Basic Info.

Model NO.
M3N
Speed
High-Speed Mechanical Seal
Temperature
Poor Temperature Mechanical Seal
Performance
Stable and Reliable
Standard
Standard
Type
Single Face Mechanical Seal
Balance
Unbalanced
Accreditation
ISO, SGS
OEM/ODM
Available
Samples
Available
Applications
Sewage Pumps, Submersible Pumps, Chemical Pumps
Delivery
Faster Delivery Time
Transport Package
Neutral Packaging or Customized
Specification
10...38mm
Trademark
HM
Origin
China
Production Capacity
500000pieces/Year

Product Description

Product Description
M3N series mechanical seals can be used in clear water pumps, sewage pumps, submersible pumps and chemical pumps for industrial pressurization, industrial wastewater, textile, irrigation, etc. They are suitable for sealing of oil, water and other weakly corrosive fluids, and their structural features are single-end face, non-equilibrium type, conical spring hook drive structure, which conforms to the standards of ISO3069, DIN24960 and GB 6556.
Working Conditions
Pressure ≤1.0 MPa
Temperature -20~150 ºC
Speeds ≤15 m/sec
Combination Materials
Auxiliary Seal nitrile synthetic rubber P
EP synthetic rubber E
fluorocarbon synthetic rubber V
Spring or other metal parts CrNi steel F
CrNiMo steel G
Materials(to DIN24960)

Rotating unit Stationary ring
G4 G6 G9 G13
Name Materials G,V Q2 G,V Q1,Q2 A,B Q1,Q2 A,B
M3 G ------ ------ ------ ------ M3N ------ M3
M32 A,B M32 M32N4 M32N ------
M37G Q1,Q2,U2 ------ M37G ------ M37GN4 M37GN M37G
silicon carbide without free silicon Q1
silicon carbide with free silicon Q2
CrNiMo steel G
Alumina V
carbon, metal-impregnated A
Carbon resin-impregnated B
tungsten carbide, nickel-bound U2
Table of seal types(According to the mat
erials and rotary unit categorization)
Product Drawings


Main Products If you are also interested in the above products, please click the link to view product details

Cartridge Type Mechanical Seals Double Face Mechanical Seals Metal Bellow Type Mechanical Seals
Multi-Spring Mechanical Seals PTFE Corrugated Mechanical Seals Rubber Bellow Mechanical Seals
Single Face Mechanical Seals Single Spring Type Mechanical Seals Wave Spring Mechanical Seals
Company Profile
Hongmi Mechanical Seals mainly produces dynamic mechanical seals for water pumps and polytetrafluoroethylene (PTFE) mouth ring static seal products. Mechanical seal products have involved more than 1000 models and specifications, including assembled mechanical seals, conical spring seals, wave spring seals, parallel spring seals, multi-spring mechanical seals and bellows mechanical seals made of different materials and other products. Meet the sealing requirements in different fields such as vertical pumps, pipeline pumps, end suction pumps, deep well pumps, submersible pumps, chemical pumps and so on. And according to the different media working conditions, we can carry out structural design and material selection.
With "professional, focus, dedication" as the company's development concept, "gathered in a corner, deep plowing". After more than twenty years of pioneering and accumulation, we have set up an innovative and technical team "oriented to the needs of customers". We have obtained 27 utility patents and own many independent core technologies. Since obtaining ISO9000 certification in 2006, we have been improving our management system in practice, and have introduced ERP management system to ensure high quality and efficient service to our customers through process management.
With "craftsmanship, reasonable price, quality service" has won the recognition and praise of customers. We have become the designated supplier of domestic brand enterprises such as "CNP", "LEO" and "NYP".
PRODUCTION EOUIPMENT CAPACITY
Hongmi Mechanical Seals have more than 100 sets of turning, milling, grinding, wire cutting, laser welding, polishing, hydraulic molding, and other special manufacturing equipments required for the production of mechanical seal products.
TESTING AND DEVELOPMENT CAPACITY
Hongmi Mechanical Seals Laboratory has more than 20 sets of various materials physical and chemical testing instruments and field testing equipment. Including mechanical seals running test bench; dynamic speed, pressure, temperature simulation test bench; airtightness test bench; density test, flatness test, flat crystal test, Shore, Rockwell, Shaw hardness test, spring tester, image molding apparatus, and so on.
INVENTORY CAPACITY
Hongmi Mechanical Seals has more than 1,300 kinds of mechanical seals for different working conditions in multiple series, with a standing safety stock of more than 80,000 sets. Can meet customer needs at any time.

Packaging & Shipping
FAQ Q: Are you a factory or a trading company?
A: We are a factory producing mechanical seals and parts, our factory is located in Deqing, Huzhou, welcome to visit us.
Q: Do you accept customized orders?
A: We have our own brand, but we also support ODM and OEM, welcome to customized inquiry!
Q: What is the price of your products?
A: The unit price of each model is listed on the website, but for customers with large demand, you can contact us for price consultation and negotiation.
Q: Can I try to get a sample before ordering?
A: Of course you can, our company provides samples for you free of charge, but you need to pay the international express delivery cost (freight to pay).
Q: How long is the delivery period?
A: After receiving the prepayment, depending on the quantity of the order, it usually takes 2-3 days for small orders and negotiation for large orders.
