High Corrosive Resistance Titanium Material Acid Centrifugal Pump

High Corrosive Resistance Titanium Material Acid Centrifugal Pump

US$1,000.00-8,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CZ Series
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
1.6MPa
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Condensate Pump, Slurry Pump, Circulating Pump, Chemical&Petrochemical, Refineries Industry etc
Material
SS304, SS316, Duplex Ss, Titanium or as Required
Theroy
Centrifugal Pump
Product Name
CZ Chemical Process Pump
Voltage
220V/380V/415V/460V or as Customer Required
Phase
Single or Three
Working Temperature
40 Degree Centigrade to 200 Degree Centigrade
Certificate
ISO, Ce
Warranty
12 Months
OEM/ODM
Yes
Color
Blue, White or as Customer Required
Transport Package
Standard Exprot Wood Package
Trademark
SUNPACE
Origin
Shanghai
HS Code
8413701090
Production Capacity
12000 Sets Per Year

Product Description

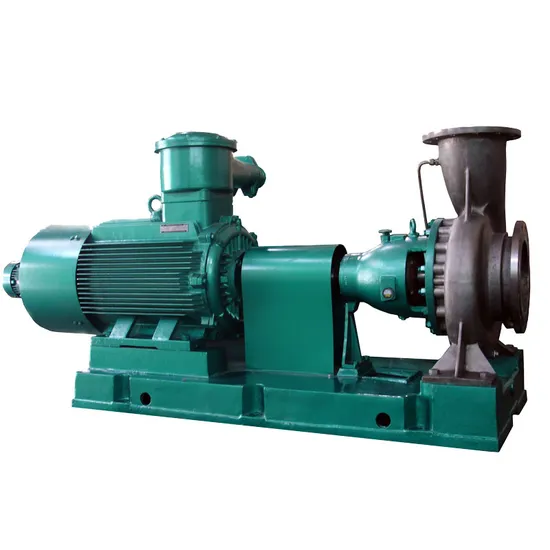

CZ Series Chemical Process Pump
The pumps of series CZ are horizontal single stage, single suction,centrifugal,process pumps. Their dimensions and performance are in conformity with DIN24256/ISO2858.
Type CZ standard chemical pump has the characteristics of type IH standard chemical pump.Its indexes of efficiency and cavitation performance exceed that of IH pump. It can make an exchange with single pump of these two types.
Product Name CZ series chemical process pump
Material SS304,SS316, SS316L,CD-4MCu, SS904, SS904L,Duplex SS, Titanium and hastelloy etc.
Standard ISO, CE
Flow rate 0.5 to 2000m3/h
Head Up to 160m
Voltage 220V/380V/415V/460V or as customer required
Design pressure 1.6MPa
Working temperature -40ºC to +200ºC
Warranty 12 months
Applilcation Handling of cold or hot, liquids neutral or corrosive liquids, clean liquids or cleans containing solids, particularly in the chemical and petrochemical industries, refineries, the pulp and paper industry, the sugar industry.

Design Characteristic
CZ series standard chemical flow process pump use enclosed impeller that diameter of axle enough,stable and reliable running.
For balance the radial force, some pump body is designed twin-volute type.
"Back pullout" structure is used in design. Hanger, include shaft, impeller form an assembly part. The length shaft coupling used.
Repairing it need not remove the line and motor,it's very convenient.
The force at shaft gland is balanced by balance hole at back blade of impeller. Single and double terminal face mechanical seal are used.
When the work temperature ≥ 80ºC, the hydrocooling bearing bracket stand is used.
If you have any others pump type require, please free contact us.
FAQ Q:Can you supply pump qualified with ANSI and ASME standard?
A:Yes, our pump compliant with ISO / ASME/ANSI standard.
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. TT or L/C at sight
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 15 working days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:SUNPACE has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Q:Who is in charge of maintenance?
A:Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours
